(06-18) - GEAR PUMP (WITHOUT HIGH FLOW)

Запчасти Case 435 (06-18) - GEAR PUMP (WITHOUT HIGH FLOW) (06) - POWER TRAIN

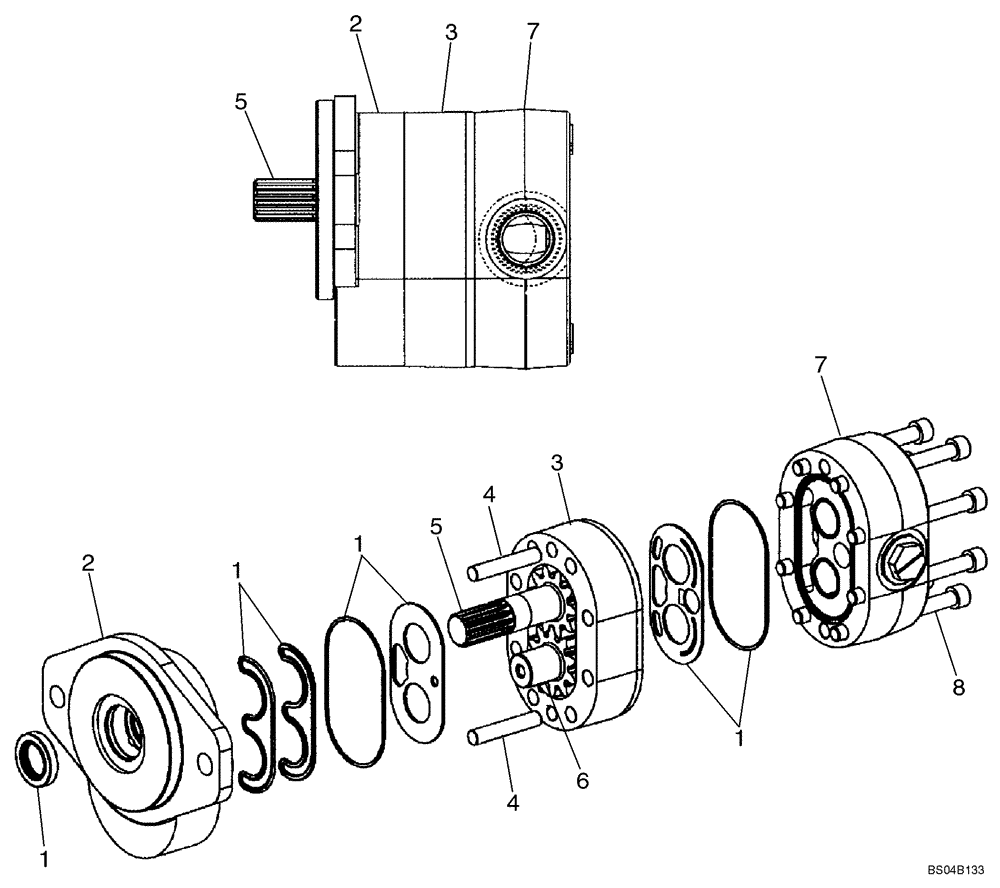

Схема запчастей Case 435 - (06-18) - GEAR PUMP (WITHOUT HIGH FLOW) (06) - POWER TRAIN
6
1
7
4
4
8
2
1
5
7
1
3
2
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024695

PUMP,36 CC

Incl. 1 - 8; Models Without High Flow

1шт.

87024695R

REMAN-HYD PUMP

435 TIER 3 , ASN N7M425032 (1/08-3/11)

1шт.

1

87042214

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drve

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.
