Запчасти Case 435 (06-16) - HYDROSTATICS - RESONATOR (06) - POWER TRAIN

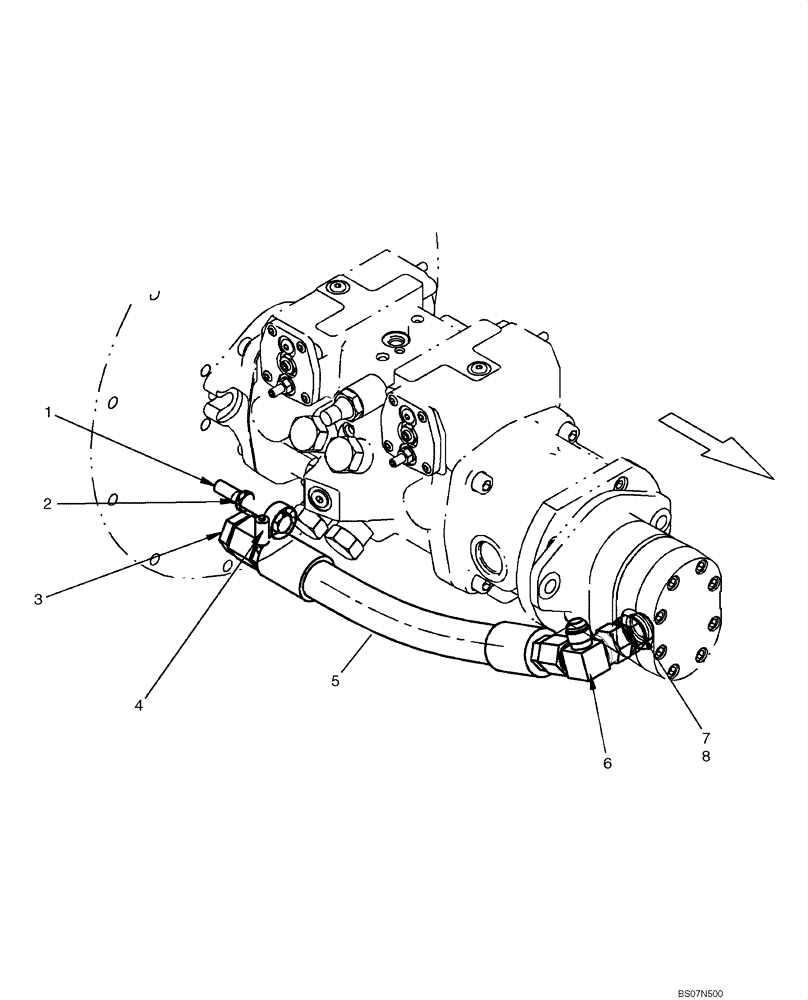

Схема запчастей Case 435 - (06-16) - HYDROSTATICS - RESONATOR (06) - POWER TRAIN
3
5
4
2
8
7
1
6

Артикул

Название

Примечание

Количество

1

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

If Used; Used with Pilots

1шт.

1

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

Used With Pilots

1шт.

2

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

Used With Pilots

1шт.

3

9790527

PLUG,1-5/16" - 12 JIC

1шт.

4

87039085

HOSE CLAMP,32mm - 54mm

Used With Pilots

1шт.

5

87717826

HOSE,25.4mm ID x 475mm L

Resonator; 475 mm (18.7 in)

1шт.

6

87441649

ADAPTER

1шт.

7

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 8

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated; Used Without Pilots

1шт.

Выбрано товаров: 10
