(06-06) - JOYSTICK VALVE KITS - ISO PATTERN, RH

Запчасти Case 435 (06-06) - JOYSTICK VALVE KITS - ISO PATTERN, RH (06) - POWER TRAIN

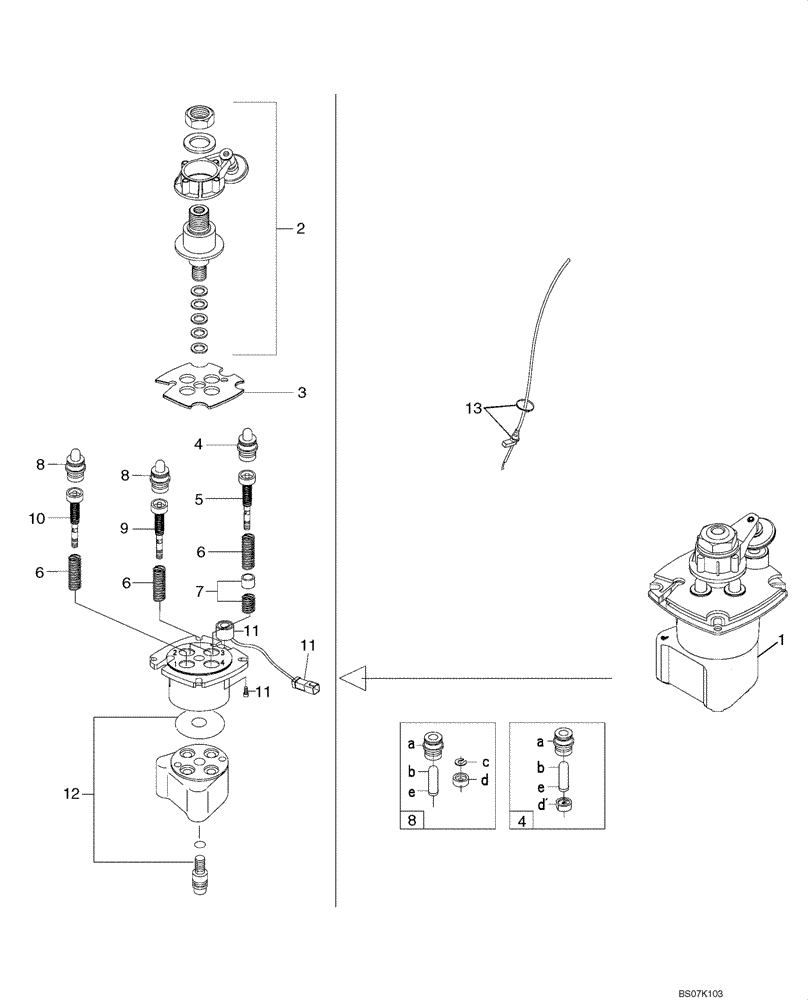

Схема запчастей Case 435 - (06-06) - JOYSTICK VALVE KITS - ISO PATTERN, RH (06) - POWER TRAIN
11
6
2
11
13
3
8
1
8
10
11
5
6
8
7
6
4
12
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600623

VALVE

Joystick Valve, ISO Pattern, RH; Incl. 2 - 13

1шт.

2

87548834

SERVICE KIT

Kit, Cardan With Detent

1шт.

3

87548836

SERVICE KIT

Retaining Plate, Detent

1шт.

4

87548839

SERVICE KIT

Full Plunger Prefeeling

1шт.

5

87548843

SERVICE KIT

Kit, Regulation Unit Prefeeling Point

1шт.

6

87614020

SPRING

Kit, Medium Spring

2шт.

7

87548846

SERVICE KIT

Prefeeling Point

1шт.

8

87548838

SERVICE KIT

Kit, Hollow Plunger

3шт.

9

87594866

SERVICE KIT

Kit, Regulation Unit

2шт.

10

87548840

SERVICE KIT

Kit, Regulation Unit

1шт.

11

87548847

SERVICE KIT

Solenoid

1шт.

12

87548848

SERVICE KIT

Standard Seal

1шт.

13

87548874

SERVICE KIT

Cable

1шт.
