Запчасти Case 435 (06-01) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN

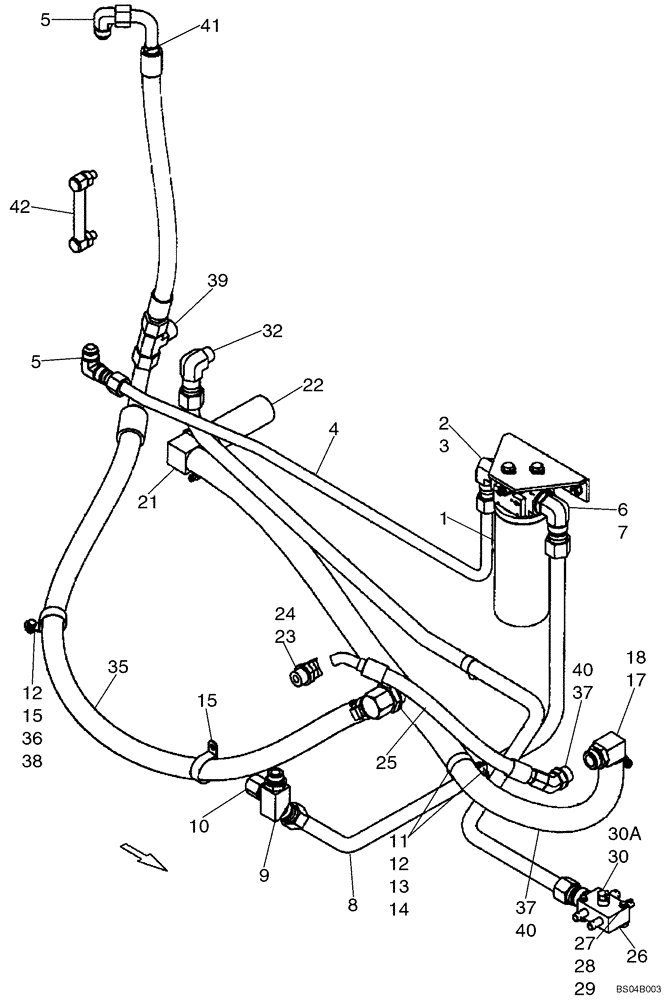

Схема запчастей Case 435 - (06-01) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN
42
10
29
3
37
2
30a
1
30
15
6
12
41
14
39
18
9
28
11
40
35
26
15
32
40
27
4
25
37
12
5
22
23
38
21
17
36
24
13
8
7
5

Артикул

Название

Примечание

Количество

1

87010593

ELEMENT

Hydrostatic Filter; For Mounting, See Figure 06-08

1шт.

2

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 3

2шт.

3

305412

O-RING 1-11/64 ID x 7/64

2шт.

4

87437432

HYD TUBE,19.05 mm OD

Filter To Cooler

1шт.

5

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

6

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl. 7

1шт.

7

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

9

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45 Deg; With Side Outlet

1шт.

10

219606

CAP,1-1/16" - 12 JIC

Remove When High Flow Option Is Installed

1шт.

11

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

3шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

14

833-40008

SPRING NUT,M8, U

3шт.

15

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

16

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

17

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl. 18

1шт.

18

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

20

87015461

HOSE

1464 mm (57 5/8 in)

1шт.

21

87029969

HYD CONNECTOR

Elbow, 90 Degree Stem, 1-1/4 Stem x 1-1/4 NPTF; Replaces 217-137 Fitting

1шт.

22

189310A1

STRAINER ASSY.

Filter, Suction Line

1шт.

23

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl. 24

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

87458620

HOSE

1шт.

26

87437351

MANIFOLD

Oil, Return

1шт.

27

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

28

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

29

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

30

76349

PLUG,9/16" - 18 ORB

Remove When High Flow, Ride Control, Or Hydraulic Coupler Options Are Installed

1шт.

31

87437352

HYD TUBE,25.40 mm OD

Case Drain

1шт.

32

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

33

87418259

FITTING

90 deg, 90 orb x 16 Bead

1шт.

34

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

35

87015464

HOSE

1484 mm (58 1/2 in)

1шт.

36

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

37

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 40

1шт.

38

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

1шт.

39

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

41

87437433

HOSE ASSY.

Cooler To Tank; 675 mm (26.57 in) If Used

1шт.

41

87460904

HOSE ASSY.

Cooler To Tank; 687 mm (27 in) If Used

1шт.

42

87374752

GAUGE

Replaces 87424266

1шт.

30a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 44
