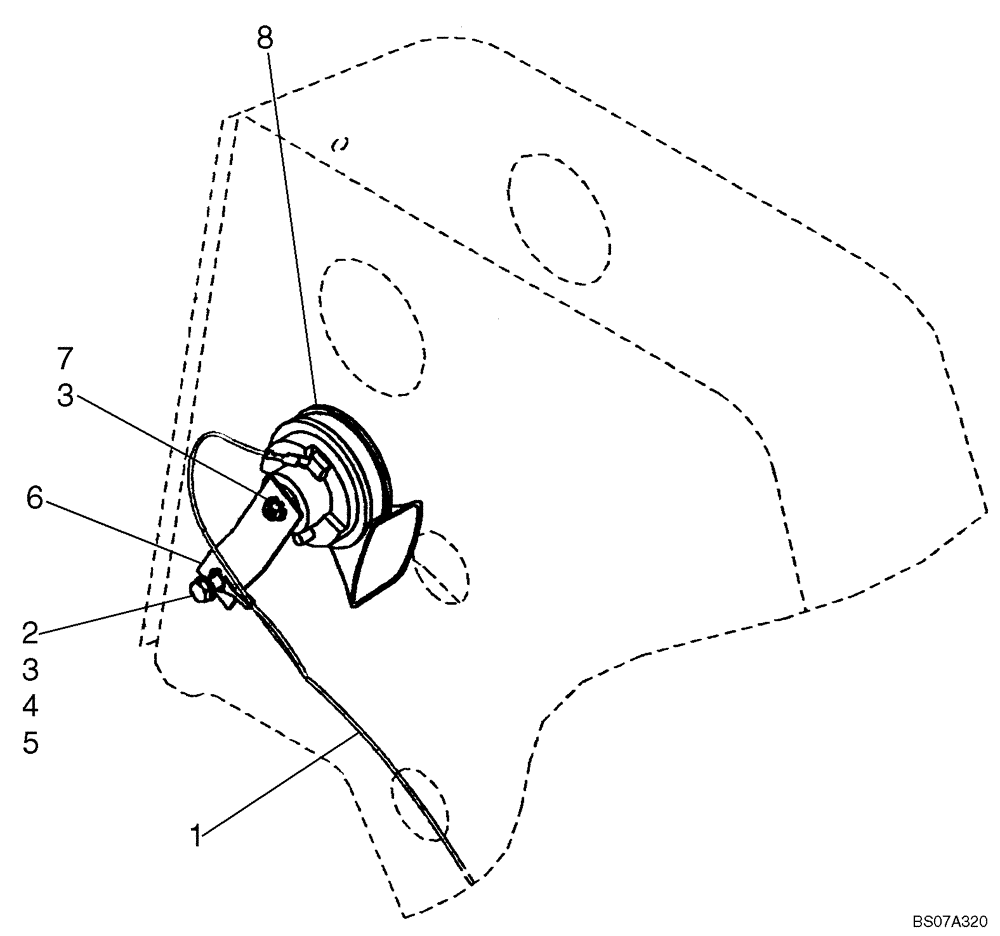

Запчасти Case 435 (04-18A) - KIT, HORN RELOCATION (04) - ELECTRICAL SYSTEMS

87590639

SERVICE KIT

Kit To Relocate Horn From Front Of Cab To Rear Loader Support Tower; Incl. 1 - 9 And Installation Instructions

1шт.

1

87590641

HARNESS

Horn Relocation

1шт.

2

9628098

NUT,M8 x 1.25, Cl 10

1шт.

3

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

341074A1

SUPPORT

1шт.

7

87030561

NUT,M6 x 1, Cl 8

1шт.

8

254130A1

HORN

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Not Illustrated

7шт.
