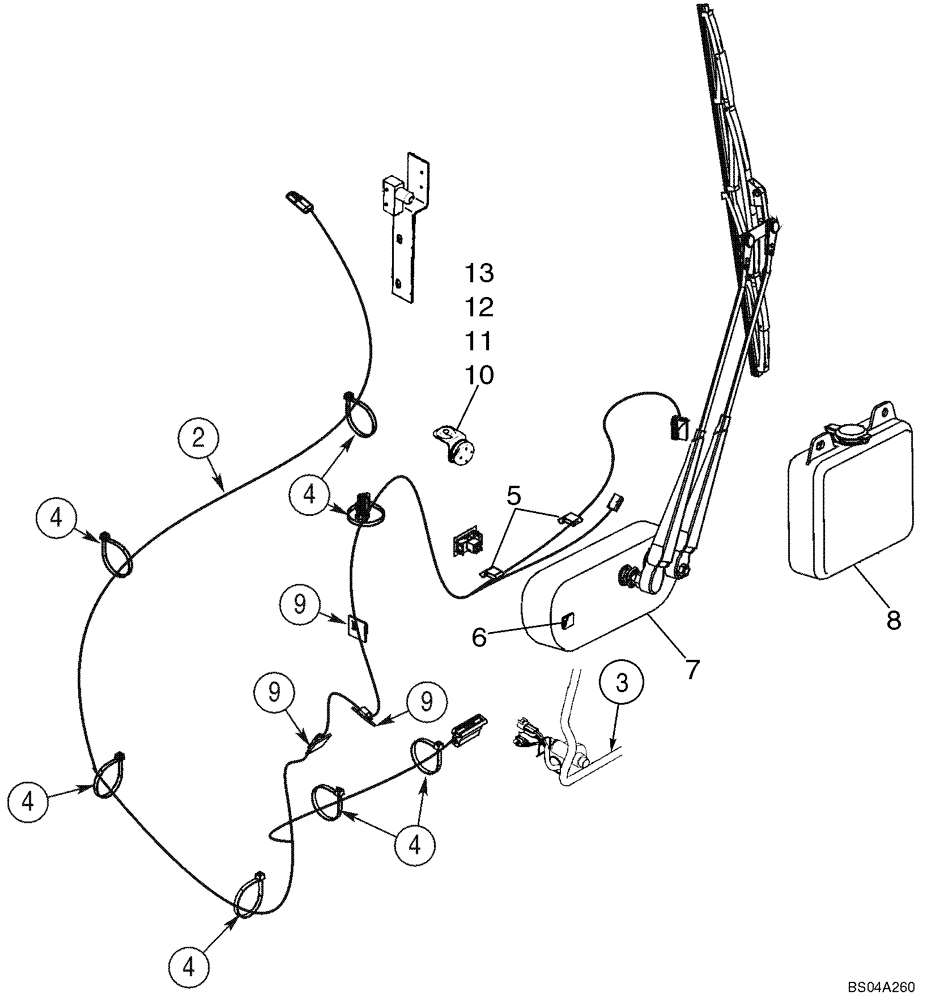

Запчасти Case 435 (04-12) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS

1

417650A2

HARNESS

Cab/Front Door; Models With Lexan Front Door; Not Illustrated; See Figure 09-32

1шт.

2

417593A2

HARNESS

Cab/Front Door; Models With Glass Front Door; See Figure 09-32

1шт.

3

87036215

HARNESS

Cab; See Figure 04-11

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

7шт.

5

442962A1

CLIP, WIRE

2шт.

6

86988664

PAD

Foam; Mounted To Back Of Windshield Wiper Motor

1шт.

7

398129A2

KIT

Wiper; See Figure 04-16

1шт.

8

322651A1

RESERVOIR ASSY.

Components Not Serviced Separately

1шт.

9

H439303

CLIP

3шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

248-1210

GROMMET,1/4" ID x 1" x .062", Diag Cut

1шт.

12

221429A2

SPACER

1шт.

13

86988663

ANGLE

Bottle Retention

1шт.
