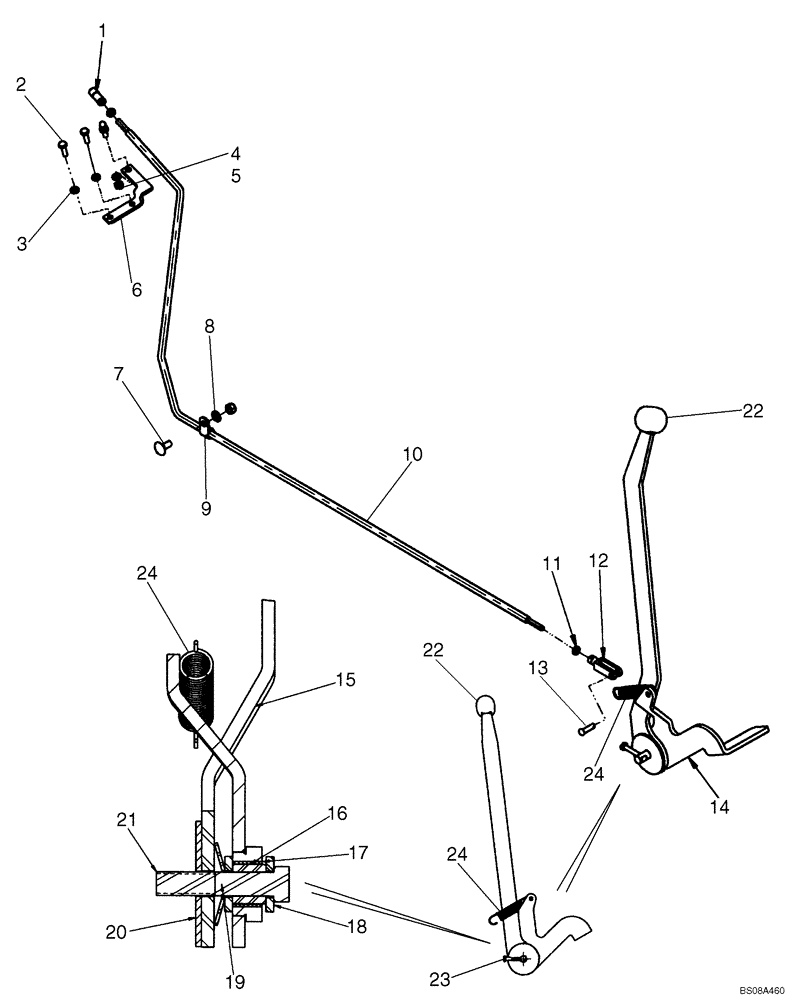

Запчасти Case 435 (03-02A) - CONTROLS - THROTTLE; IF USED (03) - FUEL SYSTEM

87648147

SERVICE KIT

Kit, Throttle; Incl 1 - 26

1шт.

1

H169920

BALL JOINT

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

3

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

4

80682

LOCK WASHER,1/4"

1шт.

5

88098

JAM NUT,Jam, 1/4"-28, G2

1шт.

6

87638953

BRACKET

Injector Pump Bracket

1шт.

7

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

87602736

ROD

Throttle Control Rod

1шт.

11

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

12

87622861

CLEVIS PIN

1шт.

13

D23693

AXLE PIN

1шт.

14

87352487

LEVER

Control Lever Assembly; Incl 15 - 24

1шт.

15

186904A1

CONTROL LEVER

1шт.

16

187035A2

SLEEVE

Throttle Pivot

1шт.

17

186905A1

BUSHING

1шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

19

R14771

WASHER

1шт.

20

1342374C1

DISC

Friction Disc

1шт.

21

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

1шт.

22

A177436

KNOB

Control Lever Knob

1шт.

23

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

24

D124939

SPRING

1шт.

25

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

Not Illustrated; Included In Kit

1шт.

26

87531822

HEATER TUBE,.625" OD

Heater Tube; Not Illustrated; Included In Kit

1шт.
