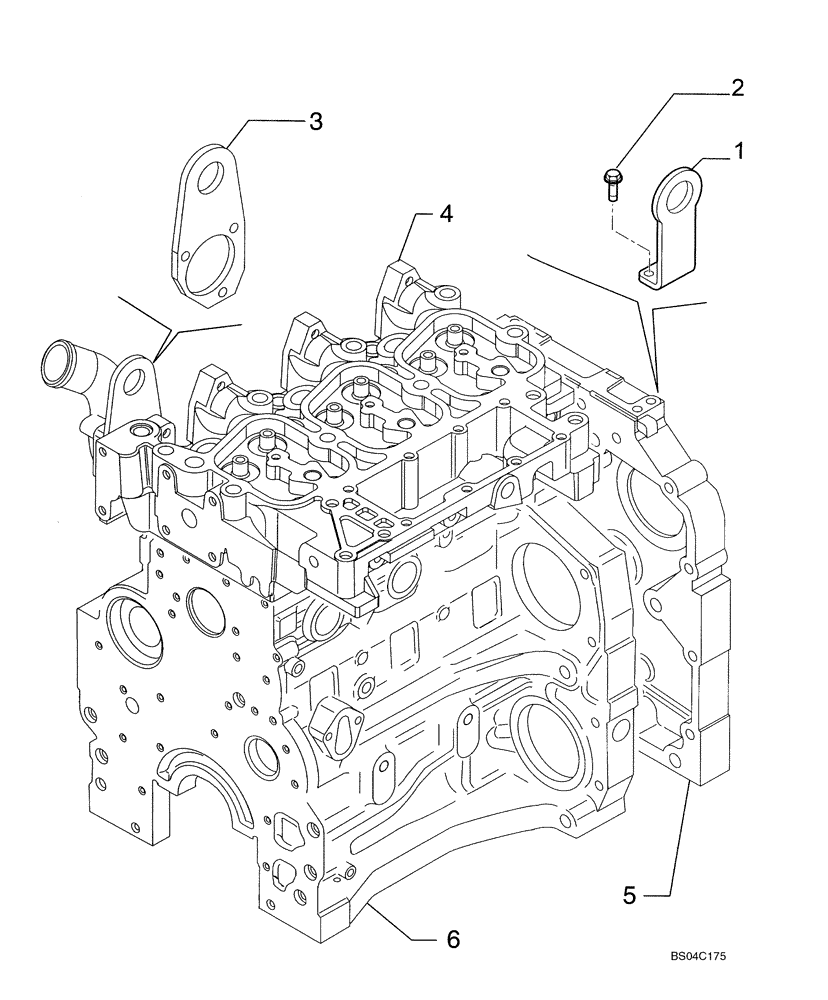

Запчасти Case 435 (02-37) - ENGINE - LIFT HOOK (02) - ENGINE

1

2853015

BRACKET

1шт.

2

2852355

SCREW

M10 x 25

2шт.

3

REF

INSTRUCTION

See Figure 02-33, Lift Hook

1шт.

4

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.

5

REF

INSTRUCTION

See Figure 02-25, Turbocharger

1шт.

6

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.
