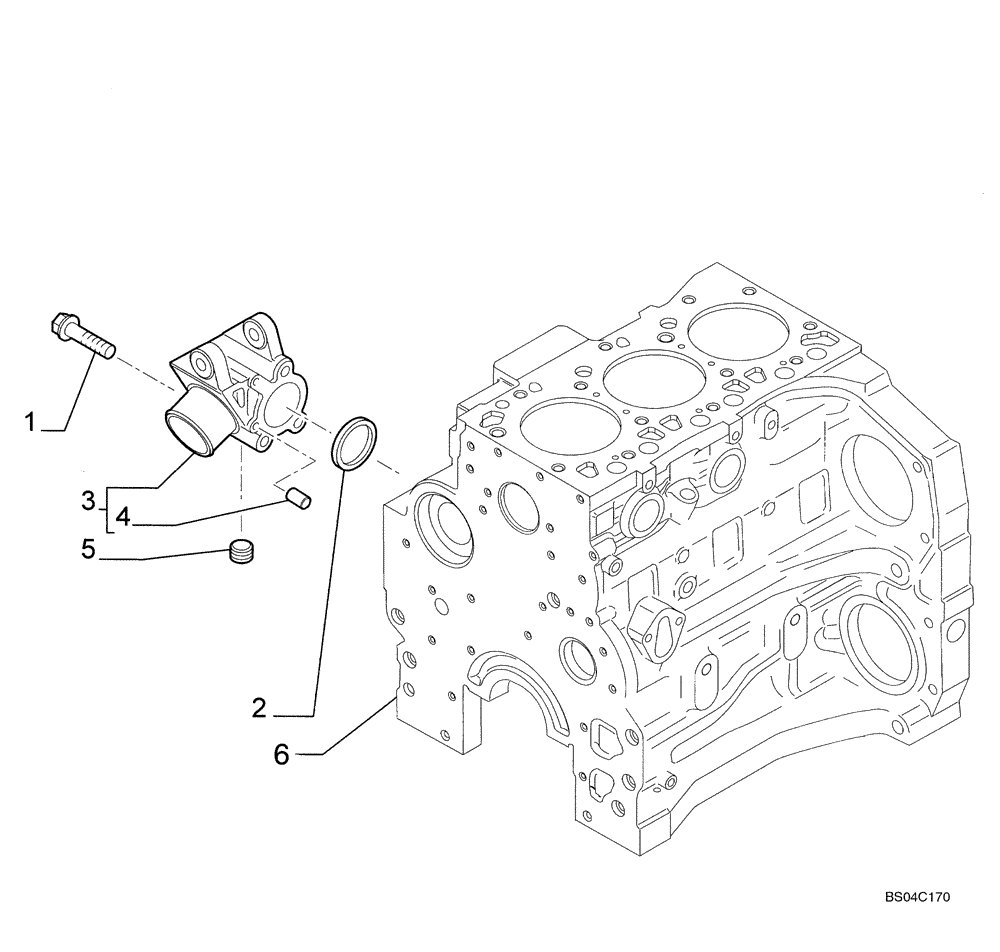

Запчасти Case 435 (02-32) - COOLING SYSTEM - ENGINE (02) - ENGINE

1

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2852145

SUPPORT

1шт.

4

2852511

PLUG,R3/8" - 18 NPTF, M8, 12.7mm L

M18 x 1.5

1шт.

5

2830894

DOWEL,.25" OD x .625" L

2шт.

6

REF

INSTRUCTION

See Figure 02-09, 02-10, Cylinder Block

1шт.
