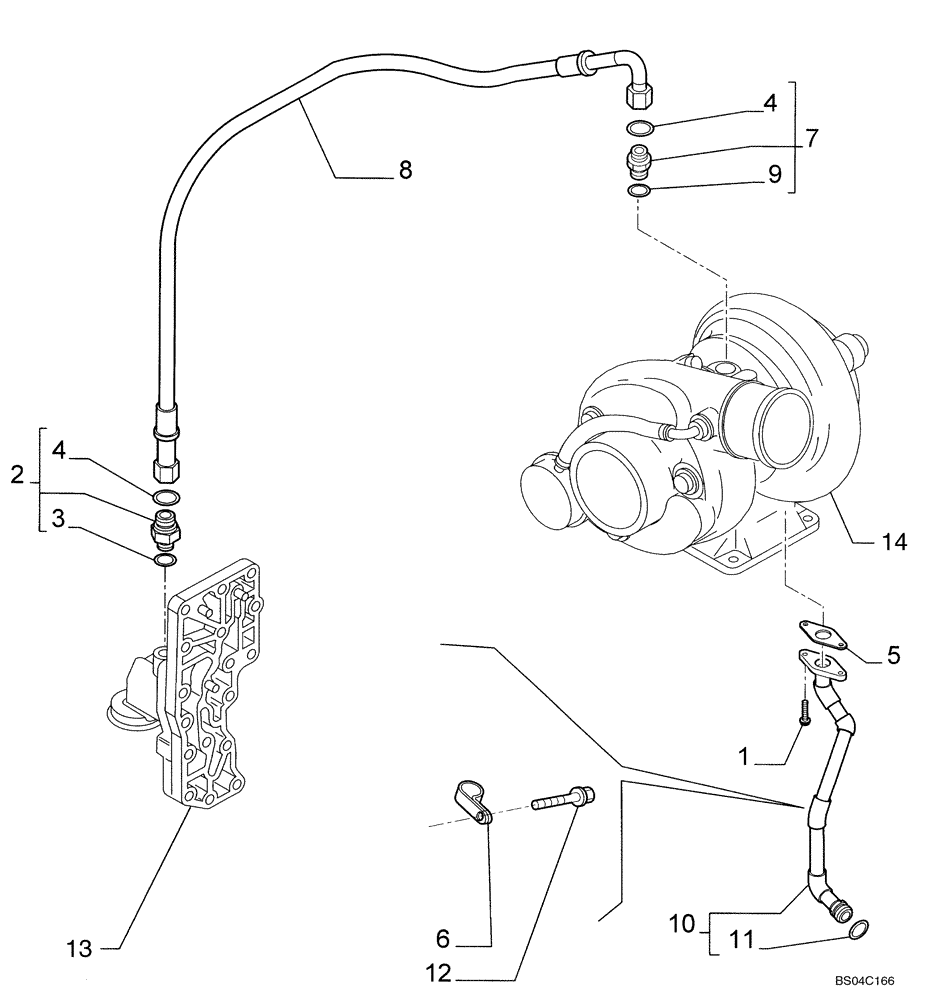

Запчасти Case 435 (02-29) - PIPING - ENGINE OIL (02) - ENGINE

1

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

8

2852195

HYDRAULIC HOSE,6.4mm ID x 461mm L

1шт.

9

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

10

2853038

HOSE

1шт.

11

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

12

4897537

SCREW

M12

1шт.

13

REF

INSTRUCTION

See Figure 02-30, Oil Filter And Cooler

1шт.

14

REF

INSTRUCTION

See Figure 02-25, Turbocharger

1шт.
