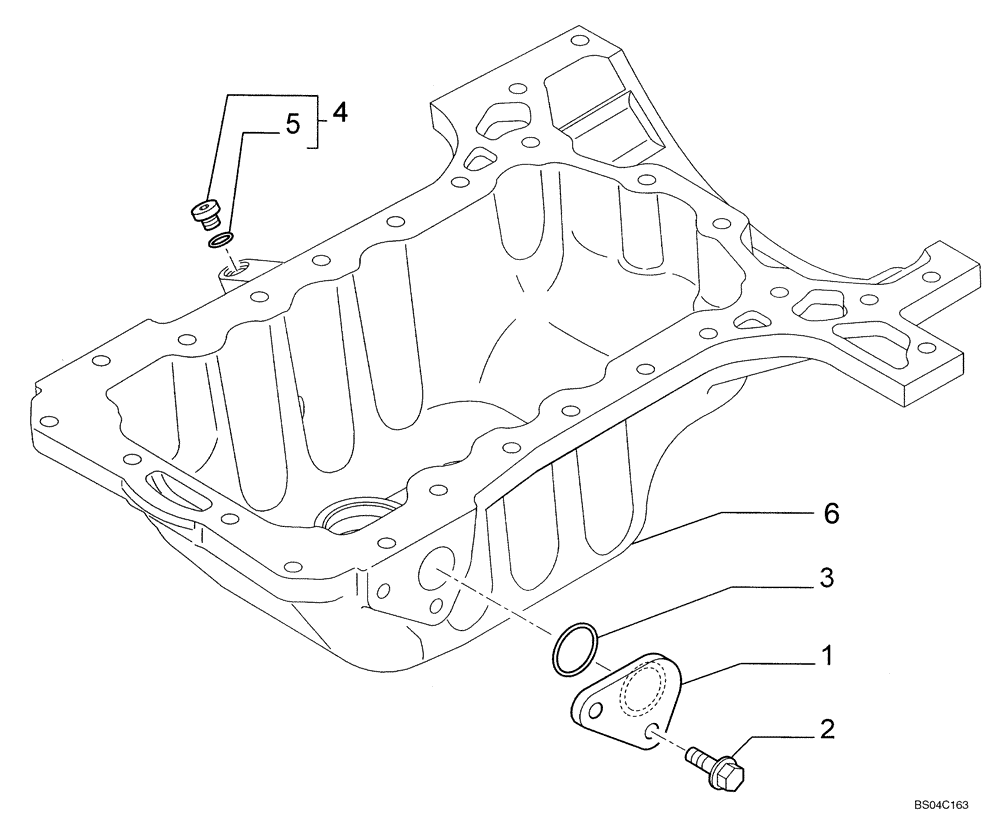

Запчасти Case 435 (02-26) - ENGINE, OIL (02) - ENGINE

1

2852995

FLANGE

1шт.

2

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

3

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

1шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

REF

INSTRUCTION

See Figure 02-11, Oil Pan

1шт.
