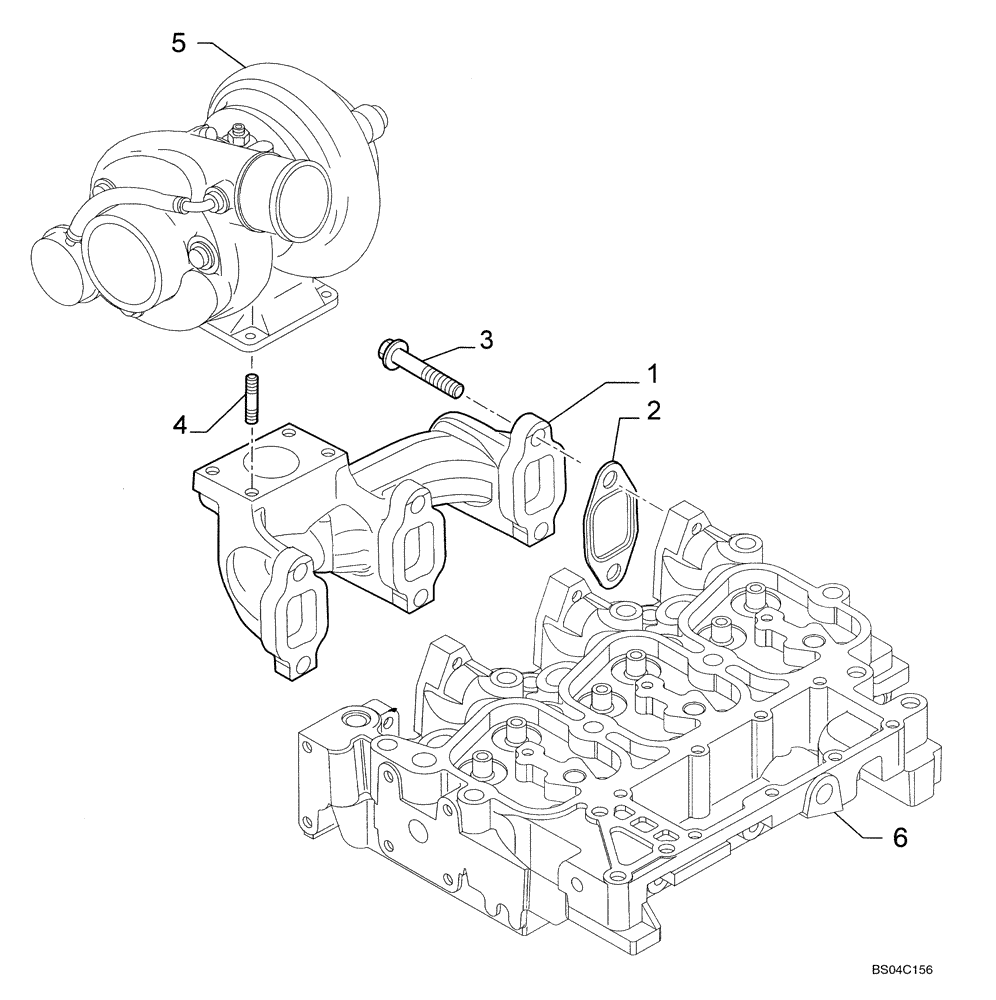

Запчасти Case 435 (02-18) - EXHAUST MANIFOLD (02) - ENGINE

1

2852981

EXHAUST MANIFOLD

1шт.

2

2830445

MANIFOLD GASKET

3шт.

3

2852834

SCREW,Hex Flg, M10 x 1.5 x 40mm

8шт.

4

4899119

STUD,M8 x 1.25 x 40

4шт.

5

REF

INSTRUCTION

See Figure 02-25, Turbocharger

1шт.

6

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.
