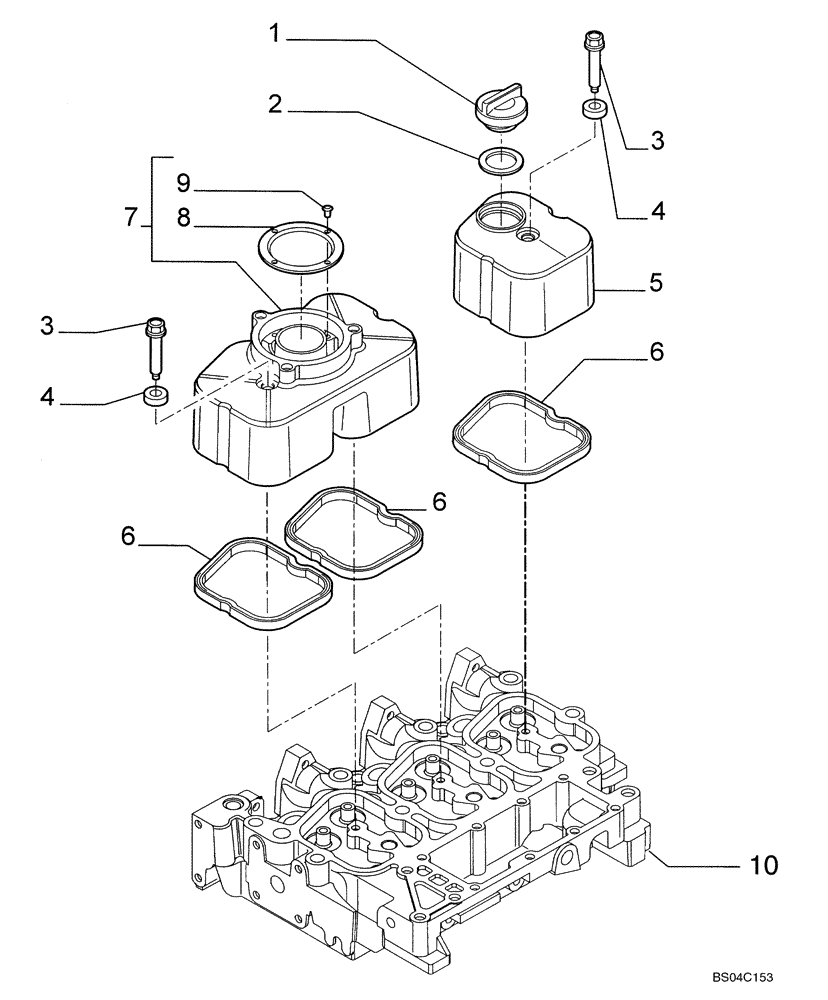

Запчасти Case 435 (02-15) - CYLINDER HEAD - COVERS (02) - ENGINE

1

4895202

FILLER CAP

1шт.

2

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

If Used

1шт.

2

4892808

SEALING RING,Rectangular, M30 x 48 x 2.8 Thk

(Gasket); If Used

1шт.

3

4895214

SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8

3шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

3шт.

5

2852894

VALVE COVER

1шт.

6

2852033

GASKET,7mm Thk

3шт.

7

2830784

VALVE COVER

Assy

1шт.

8

2830775

BAFFLE

1шт.

9

2830281

SELF-TAP SCREW,M2.9 x 6.5

4шт.

10

REF

INSTRUCTION

See Figure 02-14, Cylinder Head

1шт.
