(02-10) - CYLINDER BLOCK

Запчасти Case 435 (02-10) - CYLINDER BLOCK (02) - ENGINE

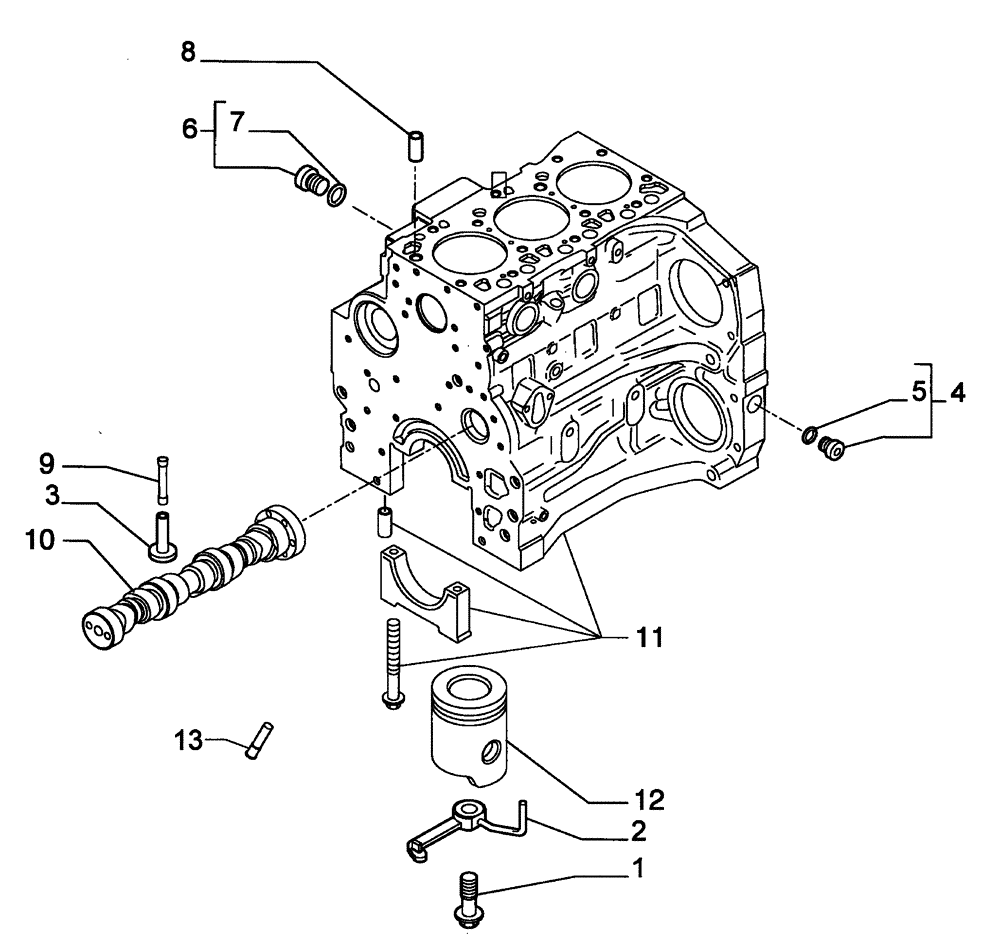

Схема запчастей Case 435 - (02-10) - CYLINDER BLOCK (02) - ENGINE
3
6
13
7
11
8
10
9
5
1
12
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4894218

SCREW,Special, M8 x 20

3шт.

2

2852203

NOZZLE, PISTON COOLI

3шт.

3

J931623

TAPPET

6шт.

4

4899009

PLUG,M10 x1

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

REF

INSTRUCTION

See Figure 02-16, Cylinder Head

1шт.

10

REF

INSTRUCTION

See Figure 02-24, Camshaft

1шт.

11

REF

INSTRUCTION

See Figure 02-09, Cylinder Block

1шт.

12

REF

INSTRUCTION

See Figure 02-21, Piston

1шт.

13

4896865

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE Saddle Mounted Piston Cooling Nozzle, Straight with Orifice; If used

3шт.
