Запчасти Case 435 (09-36) - HEATER AND AIR CONDITIONING - HOSES (09) - CHASSIS

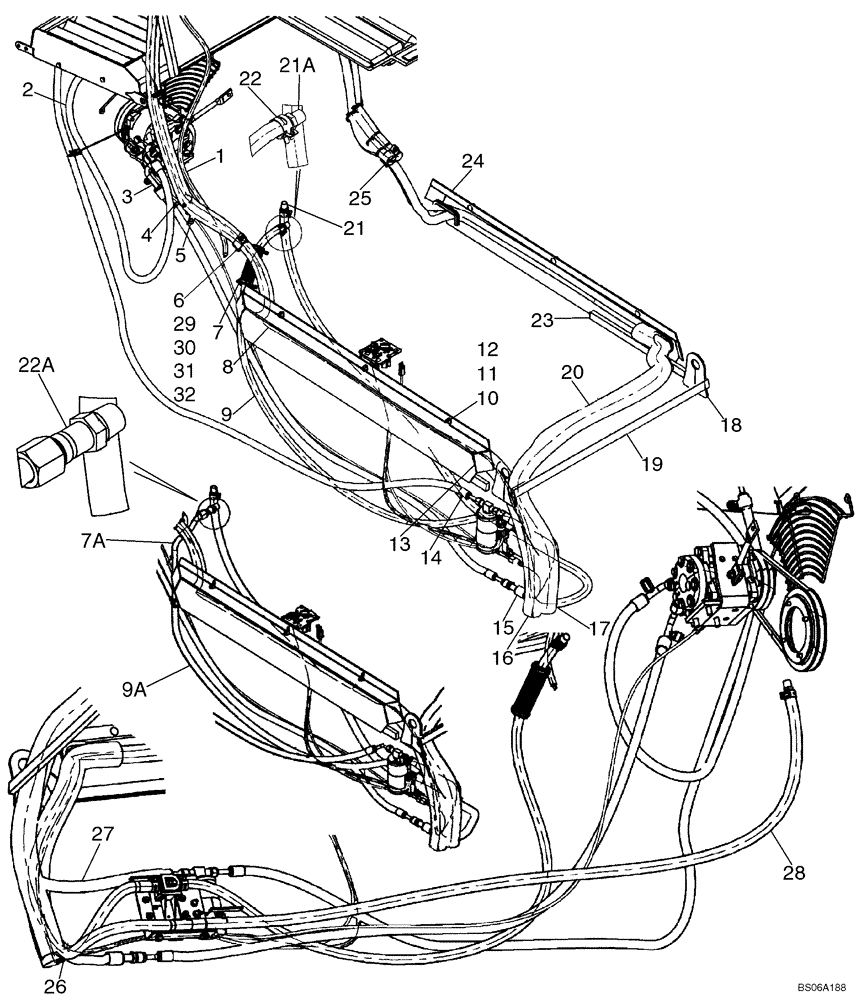

Схема запчастей Case 435 - (09-36) - HEATER AND AIR CONDITIONING - HOSES (09) - CHASSIS
1
22a
28
30
13
2
6
18
10
11
21a
32
21
23
8
9a
27
24
7
15
31
17
16
4
26
19
29
25
12
14
7a
9
22
5
3
20

Артикул

Название

Примечание

Количество

1

87450536

A/C HOSE,990.6/39 mm L

AC Drain

1шт.

2

87436121

HOSE,10.31mm ID x 1701.8mm L

Incl. O-ring 128484A1

1шт.

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 ID

1шт.

3

87436118

A/C HOSE

Incl. O-ring 128485A1

1шт.

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.00 ID

1шт.

4

529070

CABLE TIE,368.3mm L

CABLE STRAP No Longer Used, Order 87000312

10шт.

4

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

10шт.

5

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

25.4mm 3/8 in Bolt

1шт.

6

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

22.2 dia, Double

2шт.

7

308651A1

COVER

1-3/16 in; If Used

1шт.

7

87462219

PROTECTION STRIP

1.0 in; If Used

1шт.

7a

87360940

TUBE,15.88 mm OD

Heater Tube; Formed Length 300 mm (11.8 in); Used With 9A

1шт.

7a

87531822

HEATER TUBE,.625" OD

Heater Tube; Formed Length 135 mm (5.3 in); Used With 9A; Replaces 87360940

1шт.

7a

87612366

HEATER TUBE

"L" Formed Tube, 135mm (5.3 in); If Used

1шт.

8

87439845

GUARD

ROPS Rear Bottom

2шт.

9

87438210

HEATER HOSE,15.88 mm ID x 1830.00 mm, SAE 20R3

Supply

1шт.

9a

87383270

HEATER HOSE,15.88 mm ID x 1460.00 mm, SAE 20R3, SAE J20

1шт.

9a

87438212

HEATER HOSE,15.88 mm ID x 1900.00 mm, SAE 20R3

Supply, Used with 7A; Replaces 87383270

1шт.

10

412250

NUT,M8 x 1.25, Cl 8

6шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

If Used

6шт.

11

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

If Used

6шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

6шт.

13

87439844

GUARD

ROPS Front

2шт.

14

87436383

HOSE ASSY.

2806 mm (110 1/2 in.) Length; If Used

1шт.

14

87574330

HOSE

2705 mm (106 1/2 in.) Length; If Used

1шт.

15

87436117

A/C HOSE,12.7mm ID x 3657.6mm L

Incl. O-ring 128485A1

1шт.

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.00 ID

1шт.

16

87439990

GUARD,46mm ID x 900mm L, Nylon Woven

Heater Hose

1шт.

17

87438213

HEATER HOSE,15.88mm ID x 3215mm L, SAE 20R3

Return

1шт.

18

295076A1

SEAL

ROPS Pivot Pin

2шт.

19

87036372

SEALING STRIP

Lower Front ROPS

1шт.

20

87441006

TUBE,4.6mm ID x 1350mm L

AC Hoses

1шт.

21

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

21a

87302136

FITTING,5/8" Hose x 1/2" NPTF, Barbed

If Used

1шт.

22

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

No Longer Used, Order 87443511

8шт.

22

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

8шт.

22a

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

Used With 7A, 9A

1шт.

23

87036371

SEAL

Lower Side ROPS

2шт.

24

87033596

COVER

106 mm (4.17 in) Width Of Flat To First Bend; If Used

2шт.

24

87460906

COVER

118.8 mm (4.68 in) Width Of Flat To First Bend; Used With ROPS 87461181, See Figure 09-23

2шт.

25

87443444

SLEEVE

Heat Protective

2шт.

26

87438211

HEATER HOSE,15.88 mm ID x 2985.00 mm, SAE 20R3

Supply

1шт.

27

87436120

HOSE,7.92mm ID x 3657.6mm L

Incl. O-Ring 128483A1

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID

1шт.

28

87438212

HEATER HOSE,15.88 mm ID x 1900.00 mm, SAE 20R3

Return

1шт.

29

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

30

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

6шт.

30

87574372

SPACER,6.8mm ID x 10.3mm OD x 19mm L

If Used

4шт.

31

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

If Used

2шт.

31

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

If Used

4шт.

32

87301324

NUT,Spring, M5 x 0.8

If Used

4шт.

Выбрано товаров: 51
