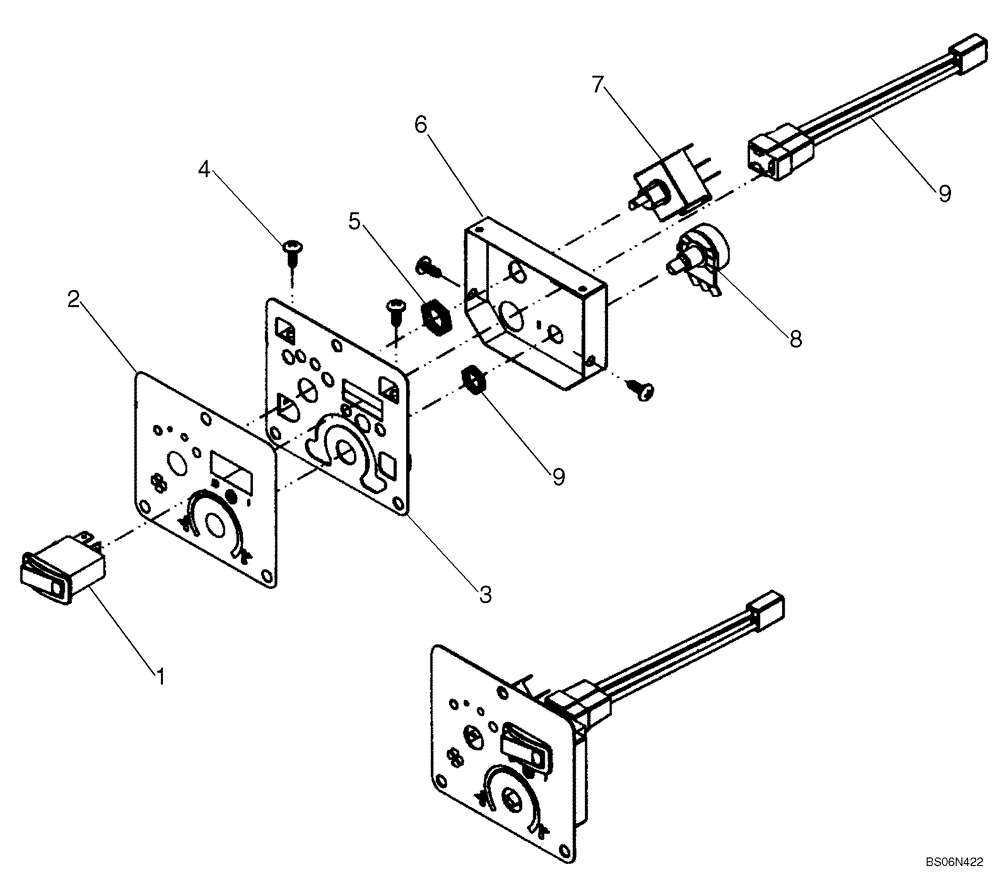

Запчасти Case 435 (09-35A) - AIR CONDITIONING SWITCH KIT (09) - CHASSIS

87582195

KIT

Air Conditioning Switch Kit; Incl. 1 - 9; See Figure 09-35 Ref 14

1шт.

1

87555249

SWITCH

A/C Switch

1шт.

2

87582033

DECAL

Heater, A/C Controls

1шт.

3

87582035

LENS

1шт.

4

NSS

NOT SOLD SEPARAT

Screws

4шт.

5

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

6

87582036

HOUSING

1шт.

7

86729669

SWITCH

Blower

1шт.

8

86729675

SWITCH,5000 Ohm

1шт.

9

87581931

HARNESS

AC Switch Jumper

1шт.
