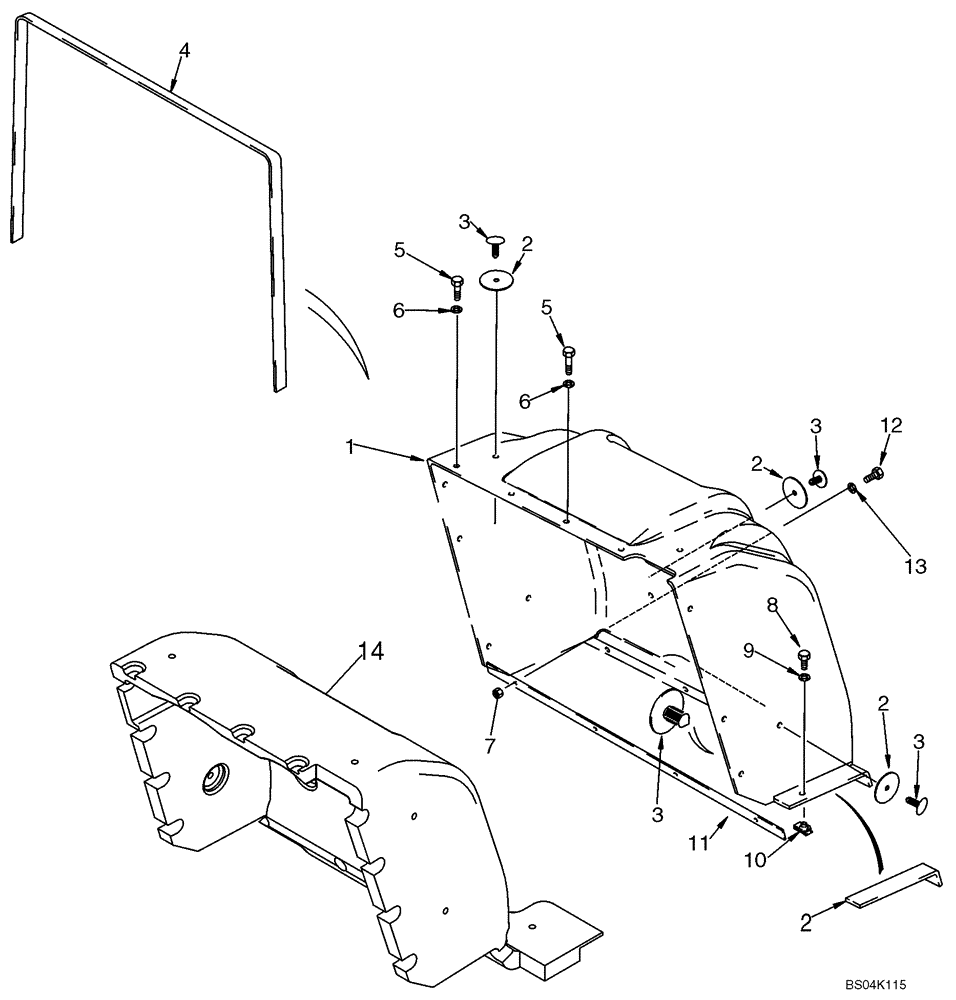

Запчасти Case 435 (09-26) - HEAT SHIELD (09) - CHASSIS

1

426114A1

SHIELD

Heat; Tan

1шт.

2

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

5шт.

3

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia; Push-In

13шт.

4

250705A2

BAND

1650 mm

1шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

87030561

NUT,M6 x 1, Cl 8

4шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

9

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

10

86625073

SPRING NUT,M6 x 1

2шт.

11

247118A1

BAND

1шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

87040372

INSULATOR

1шт.
