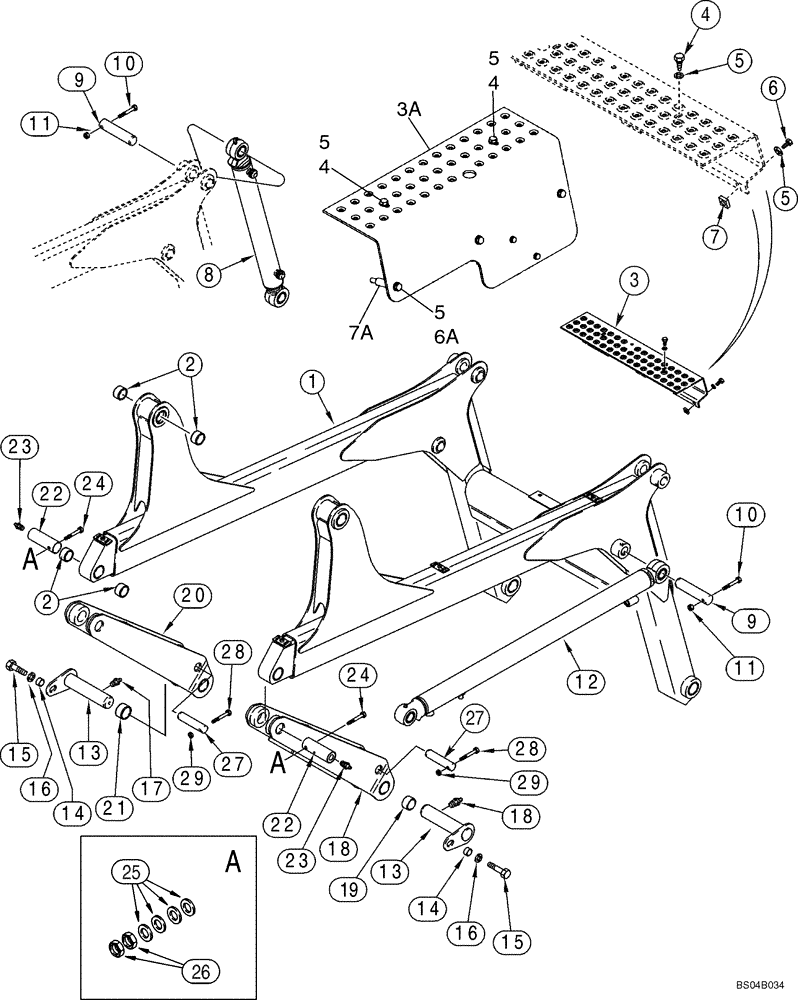

Запчасти Case 435 (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

1

87415618

LIFT ARM

Frame; Incl. 2; Incl. Decals

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

3

87620408

PLATE

476 mm (18-3/4 in) wide; Replaces 432327A1

1шт.

3a

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

Upper Step; Replaces 87422775

1шт.

4

779-14819

SELF-TAP SCREW,Hex Hd, M8 x 19

2шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6a

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

3шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

7a

33847A

SPACER,1/4" Pipe x 1 13/16"

No Longer Used, Order 87302564

3шт.

7a

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

1/4" Pipe X 2"

3шт.

8

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk; Bucket Tilt; See Figure 08-12

2шт.

8

259694A3R

REMAN-HYD CYLINDER

435, BSN N7M425032

2шт.

8

259694A3C

CORE-HYD CYLINDER

Return Number

2шт.

9

139089A1

PIN,35mm OD x 149mm L

4шт.

10

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

11

86512554

NUT,M10 x 1.5, Cl 10

4шт.

12

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

63,5 ID x 1049 mm strk; Loader Lift; See Figure 08-11

2шт.

336187A1R

REMAN-HYD CYLINDER

435 TIER 3, ASN N7M425032 (1/08-3/11)

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

13

254431A2

PIN

Ear 4.52 mm thick

2шт.

14

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

1/2 x Pipe .406 in

2шт.

15

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

16

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

17

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

18

277133A3

ROD, CONNECTING

Right Hand; Incl. 19

1шт.

19

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

20

277132A2

ROD, CONNECTING

Left Hand; Incl. 22

1шт.

21

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

22

179637A1

PIN,45mm OD x 134mm L

2шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

24

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

25

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

26

86500689

NUT,M10 x 1.5, Cl 10

4шт.

27

199896A1

PIN,35mm OD x 124mm L

2шт.

28

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

29

86512554

NUT,M10 x 1.5, Cl 10

2шт.

87448094

FRAME ASSY

Loader Arm Kit; Incl. Ref 1 and Decals

1шт.
