Запчасти Case 435 (08-21) - HIGH FLOW HYDRAULICS - MODELS WITH PILOT CONTROL (08) - HYDRAULICS

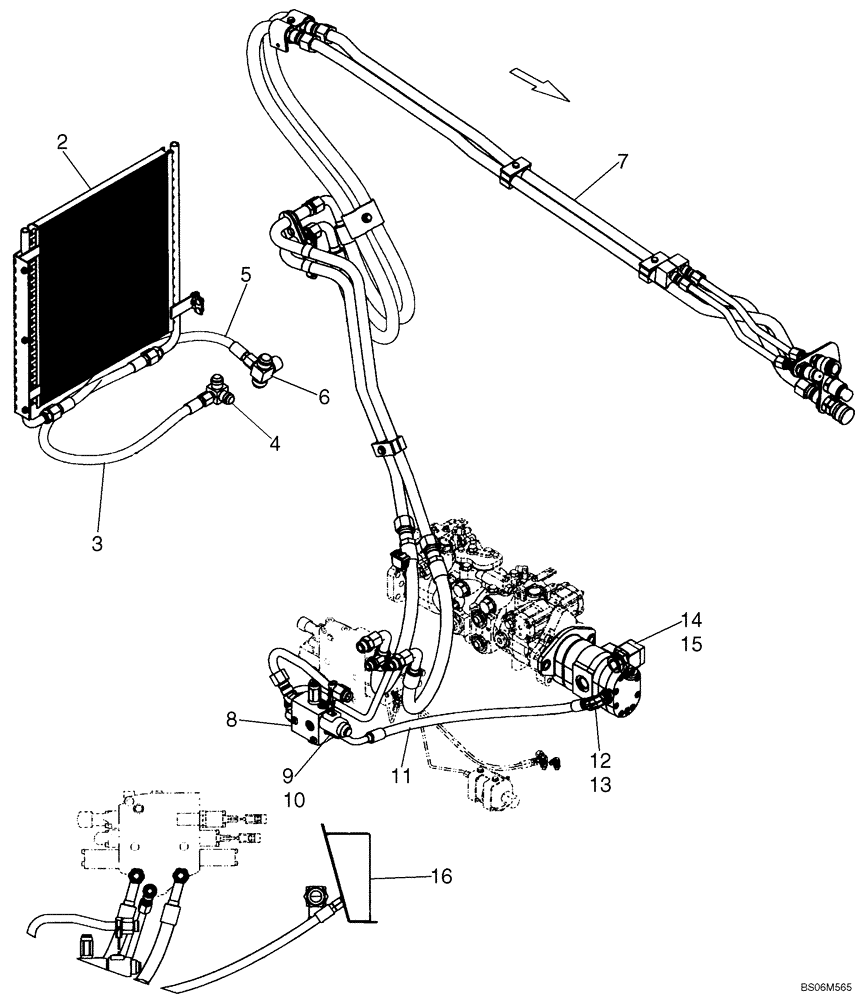

Схема запчастей Case 435 - (08-21) - HIGH FLOW HYDRAULICS - MODELS WITH PILOT CONTROL (08) - HYDRAULICS
14
2
7
3
10
9
16
8
12
6
4
11
5
13
15

Артикул

Название

Примечание

Количество

1

87571118

KIT

High Flow Kit, 435; Incl. 2 - 16; KIT NO LONGER AVAILABLE

1шт.

2

87037881

COOLER, OIL

See Fig. 06-03 For Mounting

1шт.

3

87415778

HOSE ASSY.

High Flow Cooler

1шт.

4

252946A1

TEE

1шт.

5

87422600

HOSE ASSY.

High Flow Oil Cooler

1шт.

6

87422599

TEE

1шт.

7

87555853

Not Serviced As Assembly; See Fig. 08-15

1шт.

8

87012669

VALVE

Combination Valve; See Fig. 08-13

1шт.

9

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 10

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

87436596

HOSE

High Flow Supply

1шт.

12

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 13

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

86705581

STEM

Stem 90 Bead Hose 1.25 ID X 1-5/8 - 12; Incl. 15

1шт.

15

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

16

87438538

ANGLE

Heel Plate

1шт.

Выбрано товаров: 16
