Запчасти Case 435 (08-17) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

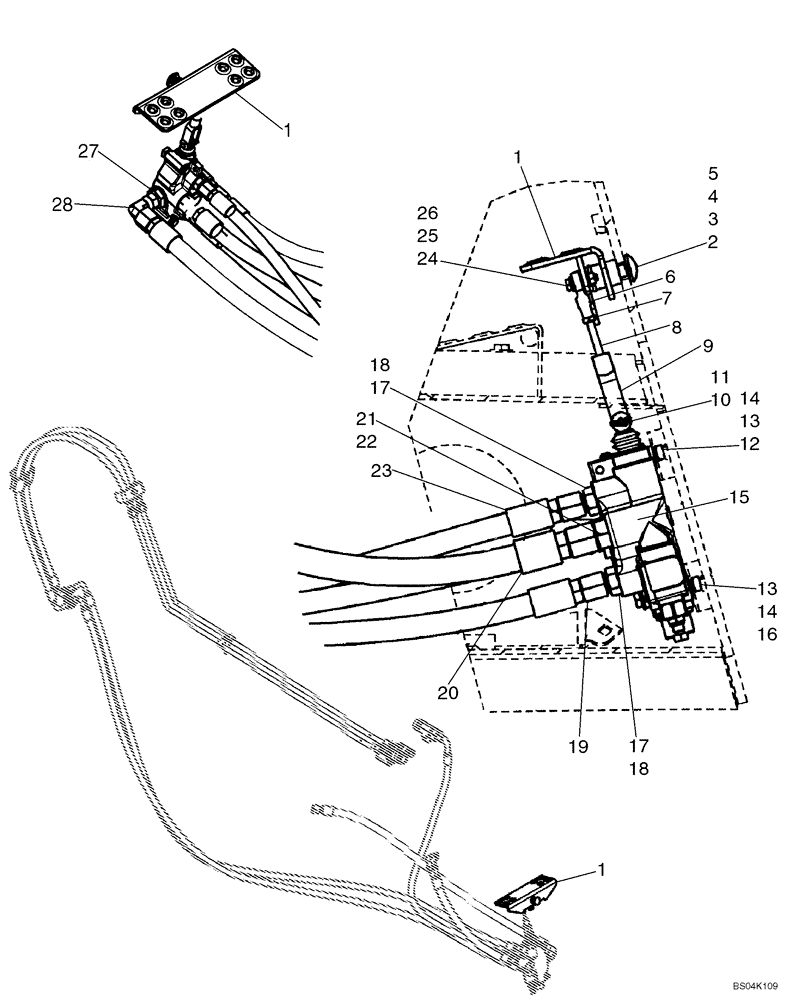

Схема запчастей Case 435 - (08-17) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS
26
21
19
25
28
8
5
2
1
11
9
3
18
27
12
16
23
24
13
1
6
20
22
18
10
7
1
5
17
13
17
15
14
14

Артикул

Название

Примечание

Количество

1

87423833

PEDAL ASSY.

If Used

1шт.

1

87741562

PEDAL

1шт.

2

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

3

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

4

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

5

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

6

L53928

BALL JOINT

1шт.

7

86976064

JAM NUT,Jam, 1/4"-28, G5

1шт.

8

87444164

ROD

Rod

1шт.

8

87444161

LINKAGE

Aux; Incl 6, 7, 8 p/n 87444164 And 9

1шт.

9

87444160

CLEVIS

1/4

1шт.

10

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

1шт.

11

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

12

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1-1/4

2шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

15

87017348

VALVE

Secondary Auxiliary; See Figure 08-18

1шт.

16

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

17

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 18; If Used

2шт.

17

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 18

2шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

87429993

HOSE ASSY.

1шт.

20

87456811

HOSE ASSY.

Secondary Auxiliary Inlet

1шт.

21

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

If Used; Incl. 22

1шт.

21

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

If Used; Incl. 22

1-2шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

87429992

HOSE ASSY.

1шт.

24

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

25

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

26

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

27

129878A1

FITTING

Power Beyond; Incl. 27A - 27C

1шт.

27a

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27b

A52424

BACK-UP RING

1шт.

27c

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

218-1703

REDUCER,37 Degree, 7/8"-14, Fem x 1 1/16"-12 Male

If Used

1шт.

28

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

29

139618A1

DECAL

Aux Hyd Control; Belongs On Pedal; Not Illustrated

1шт.

Выбрано товаров: 37
