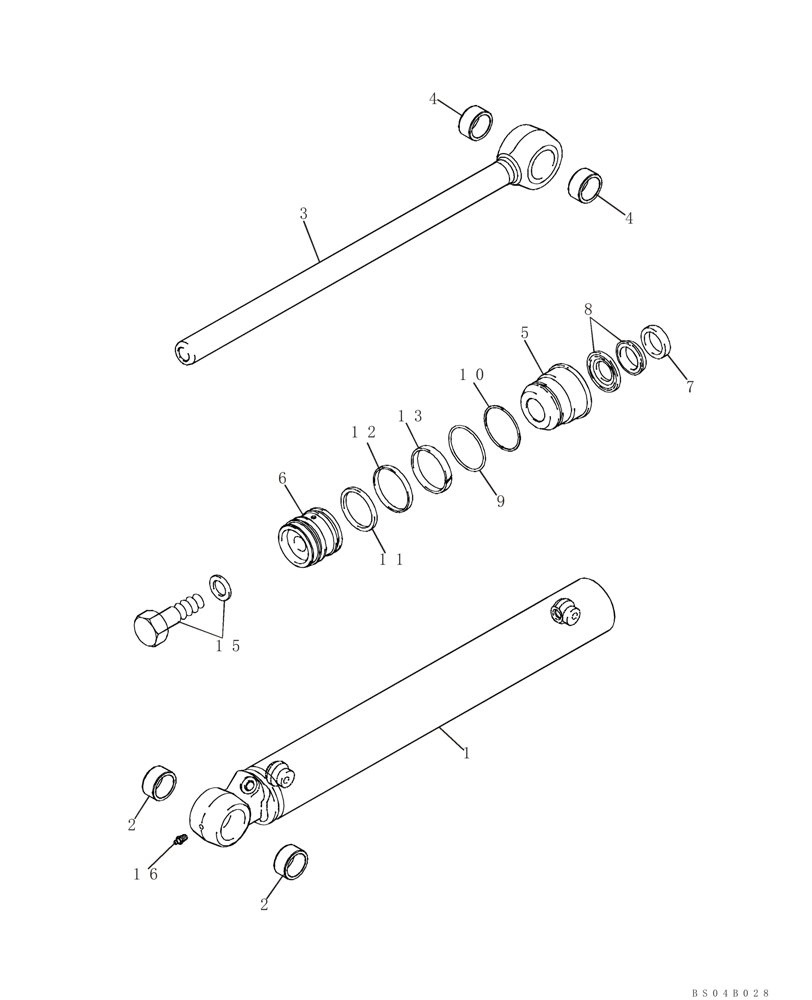

Запчасти Case 435 (08-12) - CYLINDER - LOADER BUCKET (08) - HYDRAULICS

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk; Loader Bucket; Incl. 1 - 17

2шт.

259694A3R

REMAN-HYD CYLINDER

435, BSN N7M425032

2шт.

259694A3C

CORE-HYD CYLINDER

Return Number

2шт.

1

304201A1

HYD CYL SLEEVE

Incl. 2

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

3

182553A1

PISTON ROD

32 mm OD; Incl. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

319595A1

CYLINDER END CAP

Packing

1шт.

6

304202A1

JACK PISTON

1шт.

252828A3

SEAL KIT

Incl. 7 - 13

1шт.

7

D95141

WIPER SEAL

1шт.

8

1542873C1

PACKAGE

Rod And Buffer Seal; Not Serviced Separately; Order 252828A3

1шт.

9

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

11

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

Piston

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader

1шт.

13

G100714

RING

1шт.

15

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

Bolt And Washer Assy; 3/4 x 2-1/2

1шт.

16

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.
