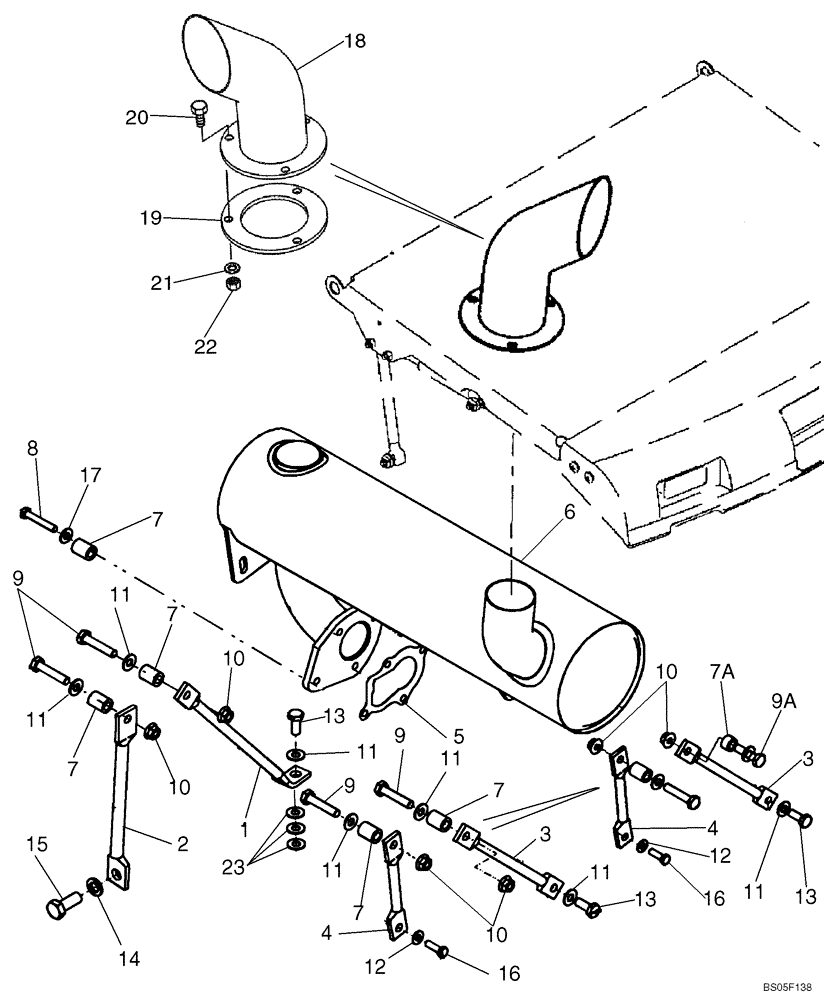

Запчасти Case 435 (02-03) - EXHAUST SYSTEM (02) - ENGINE

1

87029960

ROD

Muffler Support

1шт.

2

87028308

ROD

Muffler Support

1шт.

3

87029959

ROD

Muffler Support

1шт.

4

87029958

ROD

Muffler Support

1шт.

5

86900873

GASKET

Muffler

1шт.

6

87041878

MUFFLER

Standard

1шт.

7

256690A1

SPACER

11 ID x 25

7-8шт.

7a

87343008

SPACER

11 ID x 12

1шт.

8

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

9

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3-4шт.

9a

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

10

411345A1

LOCK NUT

Flange, Spiral Lock, M10

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

13

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

140030

LOCK WASHER,M14

1шт.

15

280854

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

1шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

18

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Extension; 268 mm (10.55 in) Tall; Replaces 304811A1; If Used

1шт.

18

87725355

EXHAUST SYSTEM PIPE

Exhaust Extension; 243 mm (9.57 in) Tall; If Used

1шт.

19

247026A1

LARGE PLATE

PLATE, LARGE Exhaust Doubler

1шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

21

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

22

14048221

NUT,M8 x 1.25, Cl 10

3шт.

23

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
