Запчасти Case 435 (08-03) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS

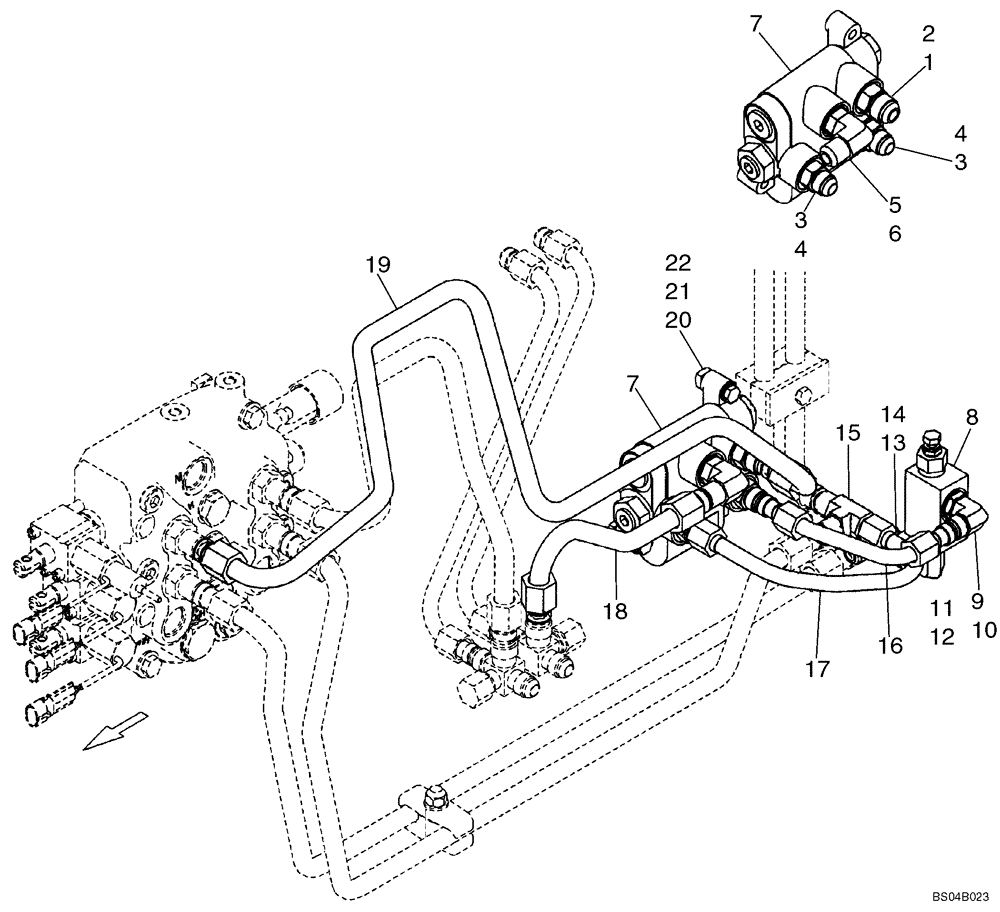

Схема запчастей Case 435 - (08-03) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS
7
3
3
14
21
15
6
10
18
20
17
2
12
1
16
8
4
5
7
22
13
11
4
9
19

Артикул

Название

Примечание

Количество

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl. 2

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 4

2шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl. 6

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

280126A2

VALVE

Self Level; See Figure 08-04

1шт.

8

294650A1

VALVE

Relief

1шт.

9

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 10

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

87622772

90 ELBOW

Long Elbow 90 Deg, 1/2 X 9/16-18 Thd 37Fl Adj Str/Thd

1шт.

11

218-5125

ELBOW,90 Degree, Adj, 3/4"-16 O-Ring x 3/4"-16 37º

Incl. 12; No Longer Used, Order 87622772

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

87622771

RUN TEE

Tee 5/8 X 1/2 X 5/8 37Fl Swivel Run

1шт.

13

218-5217

TEE,37 Degree, 1 1/16"-12x1 1/19"-12, Fem Sw Run x 7/16"-20

No Longer Used, Order 87622771

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

87605322

HYD CONNECTOR

1шт.

15

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

No Longer Used, Order 87605322

1шт.

16

87407258

HYD TUBE,12.7 mm OD x 134.2, 83.6 mm L

Bucket Rod

1шт.

17

87407253

HYD TUBE,12.7 mm OD x 144.4, 144 mm L

Bucket Base

1шт.

18

87435920

HYD TUBE,15.88 mm OD

Valve Out

1шт.

19

87435921

HYD TUBE,15.88 mm OD x 389.8, 618.7 mm L

Valve In

1шт.

20

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

21

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

22

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

2шт.

Выбрано товаров: 25
