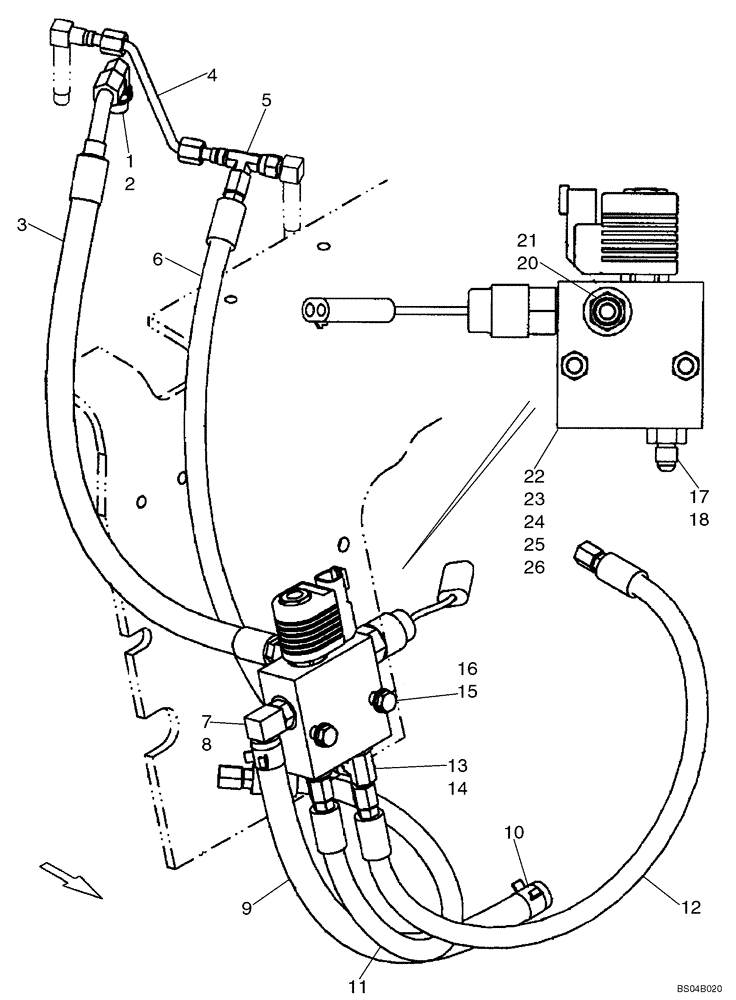

1
76344
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 2; To Charge Port on Tandem Pump
1шт.
2
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
3
87021890
HOSE
1шт.
4
87021277
TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare
1шт.
5
86513653
TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC
1шт.
6
87015466
HOSE
1шт.
7
86705580
FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB
Incl. 8
1шт.
8
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
9
87015463
HOSE,12.7mm ID x 402mm L
To Drain Manifold
2шт.
10
87443510
HOSE CLAMP,18.4mm Static ID x 15mm W
2шт.
11
87015941
HOSE
To Right Hand Motor Brake Port
1шт.
12
87015942
HOSE
To Left Hand Motor Brake Port
1шт.
13
218-5336
TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run
Incl. 16
1шт.
14
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
15
120061
BOLT,Hex, M8 x 60mm L, Cl 8.8
2шт.
16
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
17
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
Incl. 23
1шт.
18
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
14048221
NUT,M8 x 1.25, Cl 10
2шт.
20
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Incl 21
1шт.
21
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
22
87021047
BRAKE VALVE
Valve Assy; Incl. 23 - 26; For Two Speed Option, See Figure 06-06, Ref 8
1шт.
23
87424182
BRAKE VALVE
Solenoid Valve
1шт.
24
NSS
NOT SOLD SEPARAT
Body
1шт.
25
87433496
COIL
1шт.
26
87458061
PRESSURE SWITCH
Brake Valve; Incl. O-Ring Which Is Not Serviced Separately
1шт.
