(06-17) - PUMP, GEAR (HIGH FLOW)

Запчасти Case 435 (06-17) - PUMP, GEAR (HIGH FLOW) (06) - POWER TRAIN

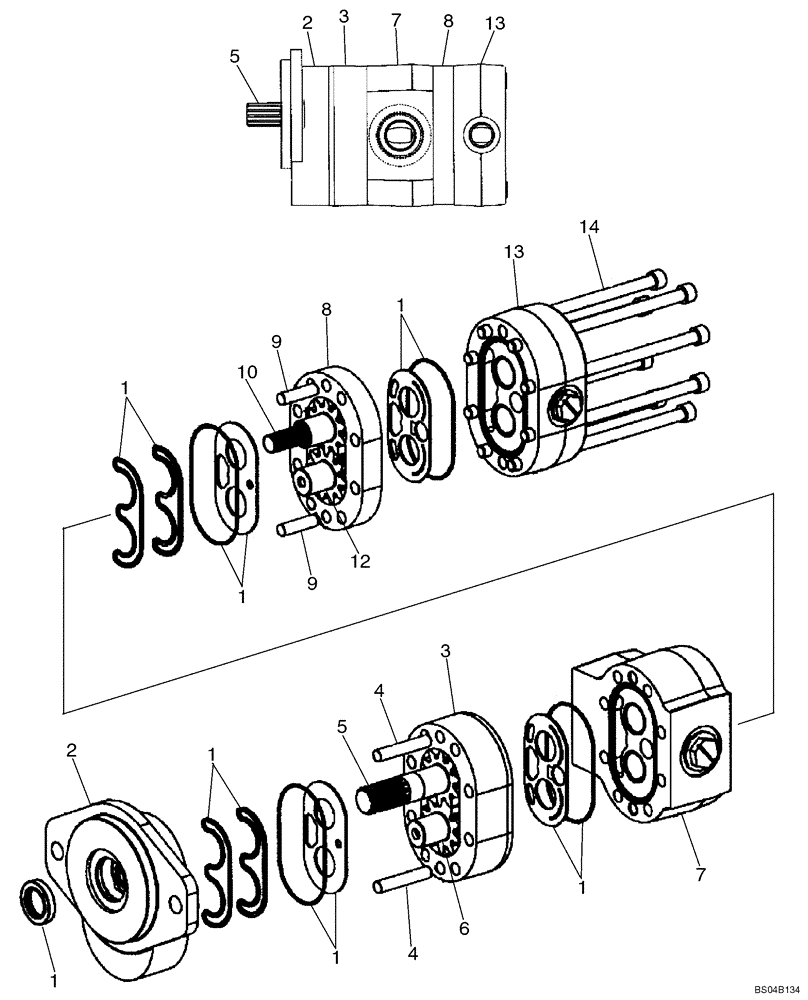

Схема запчастей Case 435 - (06-17) - PUMP, GEAR (HIGH FLOW) (06) - POWER TRAIN
9
1
3
1
8
1
13
1
10
7
4
12
3
5
9
8
4
1
2
5
6
1
1
7
2
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024698

PUMP

Incl. 1 - 14; Models With High Flow

1шт.

1

87042215

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drve

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Bearing; Component Parts Not Serviced Separately

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

9

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

10

NSS

NOT SOLD SEPARAT

Coupling, Shaft

1шт.

11

NSS

NOT SOLD SEPARAT

Shaft, Idler Drive

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

13

NSS

NOT SOLD SEPARAT

Cover; Component Parts Not Serviced Separately

1шт.

14

NSS

NOT SOLD SEPARAT

Screw

8шт.
