Запчасти Case 435 (06-05) - HYDROSTATICS - DRIVE MOTORS (06) - POWER TRAIN

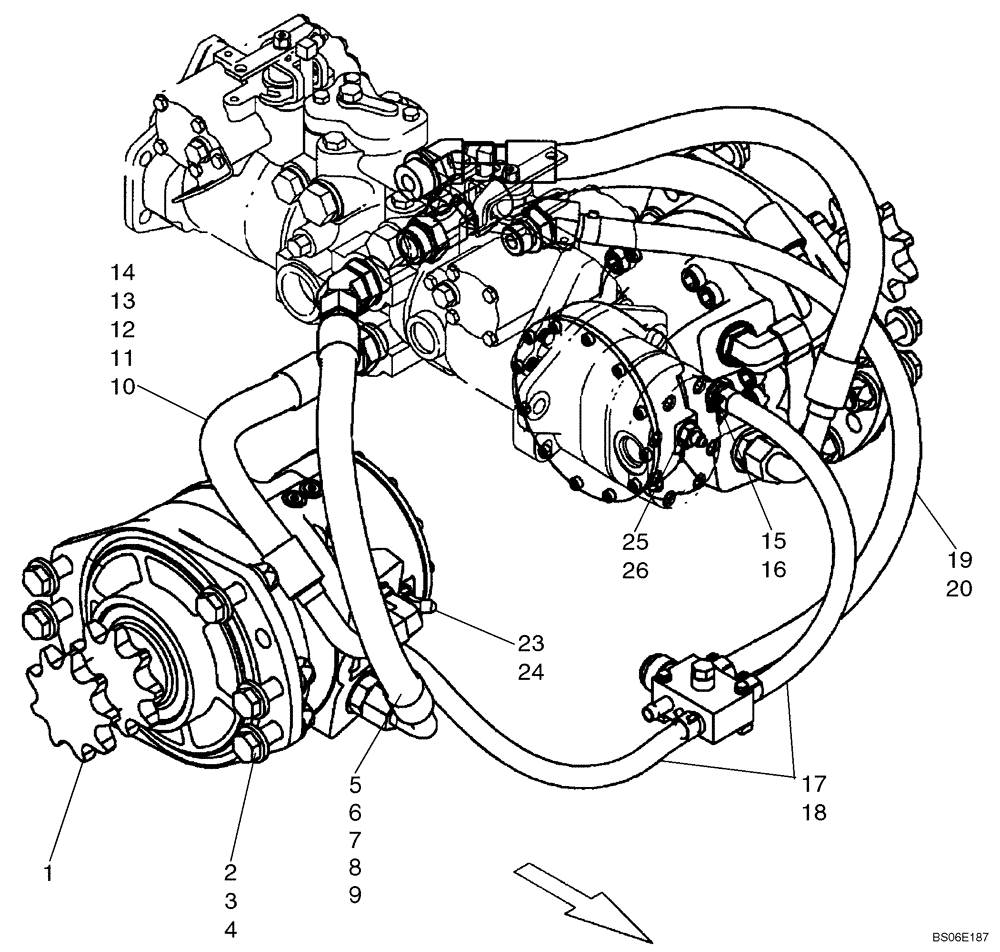

Схема запчастей Case 435 - (06-05) - HYDROSTATICS - DRIVE MOTORS (06) - POWER TRAIN
16
7
15
23
11
2
9
8
14
18
13
4
3
17
10
12
6
20
5
24
1
25
19
26

Артикул

Название

Примечание

Количество

1

87035451

HYDRAULIC MOTOR

See Figure 06-18 - 06-20; For Two Speed Option, See Figure 06-06, Ref 7

2шт.

1

87035451R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

1

87035451C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

12шт.

3

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

4

86512555

NUT,M16 x 2, Cl 10

12шт.

5

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 3

2шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

87013993

HOSE

633 mm (25 in)

2шт.

8

22907

ELBOW,0.50" ID x 175.00", SAE J517, SAE J516, SAE J846, SAE J1273

Incl. 9

2шт.

9

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

10

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 11

2шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

87013992

HOSE

451 mm (17-3/4 in)

2шт.

13

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl. 14

2шт.

14

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl. 16

2шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

87015463

HOSE,12.7mm ID x 402mm L

2шт.

18

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

19

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

20

87015462

HOSE

577 mm (22-3/4 in)

1шт.

21

87021779

FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded

1шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. 24

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 26

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 28
