Запчасти Case 430 (06-03A) - PUMP, TANDEM - MOUNTING, NORTH AMERICAN/EUROPE NOISE CONTROL; IF USED (06) - POWER TRAIN

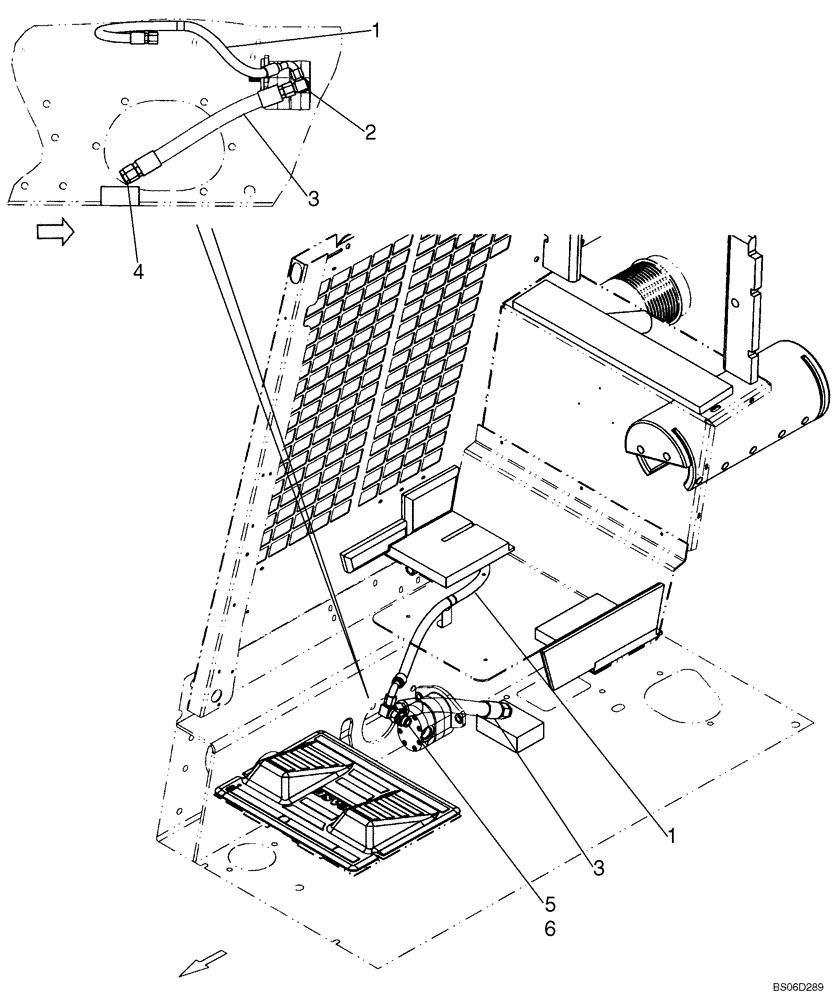

Схема запчастей Case 430 - (06-03A) - PUMP, TANDEM - MOUNTING, NORTH AMERICAN/EUROPE NOISE CONTROL; IF USED (06) - POWER TRAIN
1
3
3
6
4
2
1
5

Артикул

Название

Примечание

Количество

1

87354990

HOSE ASSY.

1031 mm (40.59 in) Supply; Replaces 87021838 on a Basic Unit, See Figure 06-03, Ref 7

1шт.

1

87600629

HOSE

950 mm (37.40 in) Supply

1шт.

2

87441649

ADAPTER

Swivel Tee Side Outlet Reducer

1шт.

3

87462103

HOSE ASSY.

Resonator

1шт.

4

9790527

PLUG,1-5/16" - 12 JIC

1шт.

5

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 6

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
