Запчасти Case 430 (04-13A) - CONTROLS, LEFT HAND - HANDLE; IF USED, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS

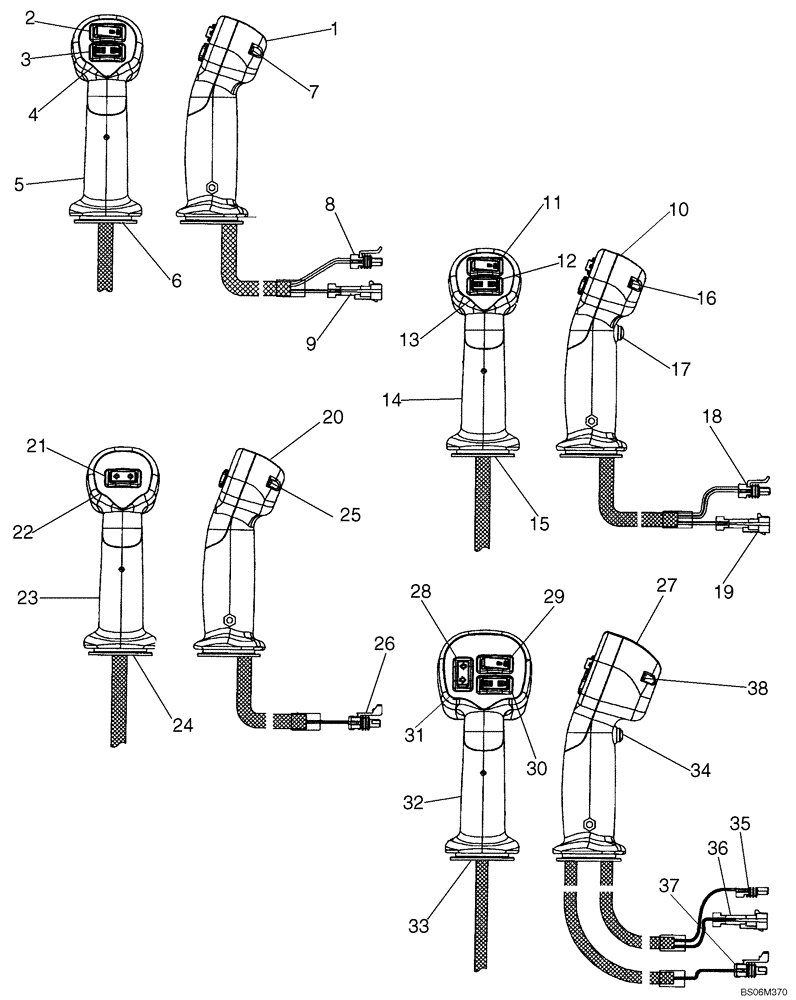

Схема запчастей Case 430 - (04-13A) - CONTROLS, LEFT HAND - HANDLE; IF USED, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS
28
36
38
2
21
25
4
34
12
29
26
8
32
16
14
15
33
10
7
30
11
5
13
19
9
3
1
20
17
35
27
31
18
23
24
37
22
6

Артикул

Название

Примечание

Количество

1

87563569

HANDLE

Hydraulic Attachment; Incl. 2 - 9

1шт.

2

87458601

SWITCH

Hydraulic Attachment, Off/On

1шт.

3

87440121

SWITCH

Hydraulic Attachment, M-O-M

1шт.

4

87582396

PLATE

1шт.

5

87582391

HANDLE

1шт.

6

87527964

ADAPTER

Adapter

1шт.

7

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

8

256341A1

ELEC CONNECTOR,Male, 2 Pin

Black

1шт.

9

256342A1

ELEC CONNECTOR,Female, 2 Pin

Gray

1шт.

10

87563570

HANDLE

Hydraulic Attachment, Two Speed; Incl. 11 - 19

1шт.

11

87458601

SWITCH

Hydraulic Attachment, Off/On

1шт.

12

87440121

SWITCH

Hydraulic Attachment, M-O-M

1шт.

13

87582396

PLATE

1шт.

14

87582392

KNOB

1шт.

15

87527964

ADAPTER

Adapter

1шт.

16

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

17

87427352

SWITCH

Two Speed

1шт.

18

256342A1

ELEC CONNECTOR,Female, 2 Pin

Gray

1шт.

19

256341A1

ELEC CONNECTOR,Male, 2 Pin

Black

1шт.

20

87563571

HANDLE

Turn Signal; Incl. 21 - 26

1шт.

21

87427353

SWITCH

Turn Signal

1шт.

22

87582397

PLATE

1шт.

23

87582391

HANDLE

1шт.

24

87527964

ADAPTER

Adapter

1шт.

25

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

26

256344A1

CONNECTOR, ELEC

CONNECTOR Black

1шт.

27

87563572

HANDLE

Hydraulic Attachment, Turn Signal, Two Speed; Incl. 28 - 37

1шт.

28

87427353

SWITCH

Turn Signal

1шт.

29

87458601

SWITCH

Hydraulic Attachment, Off/On

1шт.

30

87440121

SWITCH

Hydraulic Attachment, M-O-M

1шт.

31

87582398

PLATE

1шт.

32

87582390

HANDLE

1шт.

33

87527964

ADAPTER

Adapter

1шт.

34

87427352

SWITCH

Two Speed

1шт.

35

256342A1

ELEC CONNECTOR,Female, 2 Pin

Gray

1шт.

36

256341A1

ELEC CONNECTOR,Male, 2 Pin

Black

1шт.

37

256344A1

CONNECTOR, ELEC

CONNECTOR Black

1шт.

38

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

Выбрано товаров: 38
