Запчасти Case 430 (04-06) - HARNESS, CHASSIS (04) - ELECTRICAL SYSTEMS

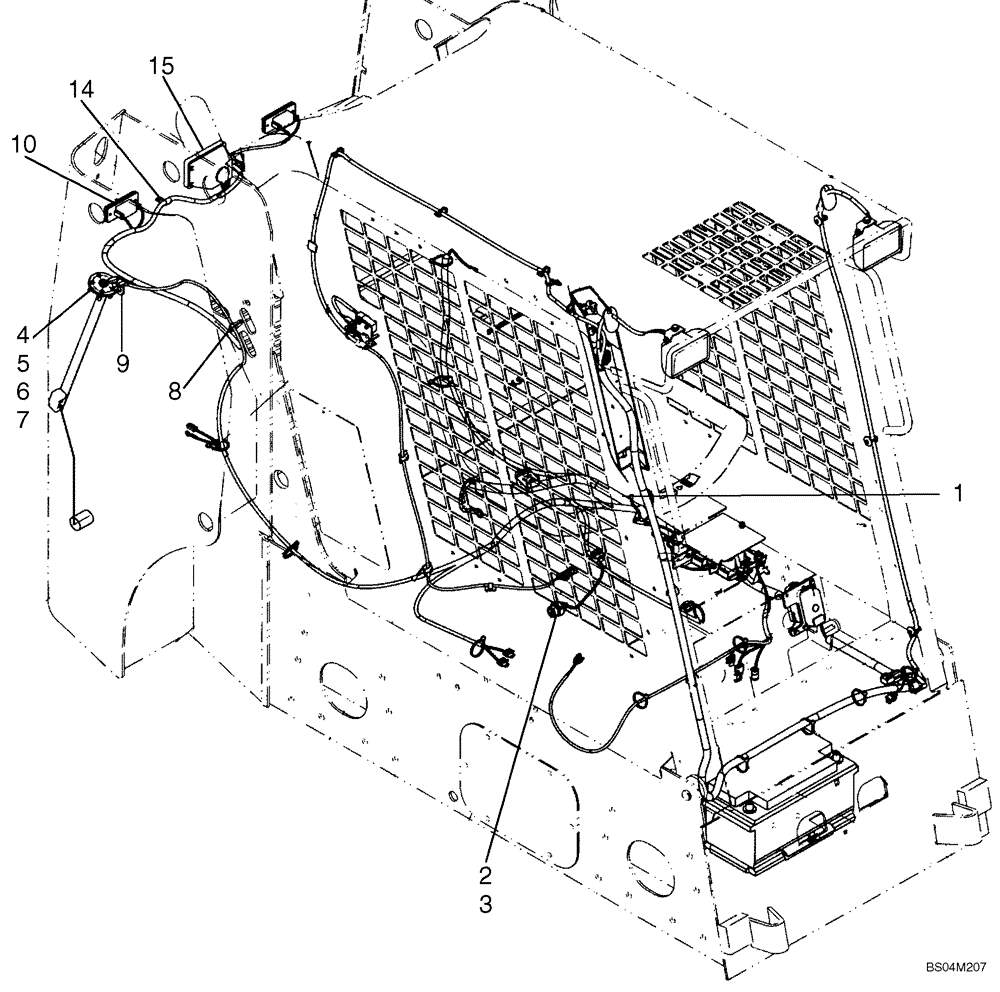

Схема запчастей Case 430 - (04-06) - HARNESS, CHASSIS (04) - ELECTRICAL SYSTEMS
2
10
8
6
14
4
1
3
5
15
9
7

Артикул

Название

Примечание

Количество

1

87388451

HARNESS

Main Chassis; Replaces 87053129; Incl. Diode L71879

1шт.

1

87606713

HARNESS

Main Chassis; Replaces 87388451; Incl. Diode L71879, Fuse Block 245435C1 and Resistor Jumper 87603548 Shown on 04-08

1шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

245435C1

FUSE HOLDER

1шт.

2

87033027

ADAPTER

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil Temperature

1шт.

4

376843A4

SENDER UNIT

SENDER Fuel Level

1шт.

5

528359R4

GASKET,3.05mm Thk

1шт.

6

87308282

SCREW,HWH, #10 - 32 x 3/4"

5шт.

7

196985A1

ROD,THREADED

THREADED ROD #10

5шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

8шт.

9

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

10

233163A2

LAMP, TAIL

LIGHT, TAIL Incl. 11 - 13; Component Parts Not Shown Separately

2шт.

11

259499A1

BULB

12V 5W

1шт.

12

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

2шт.

13

NSS

NOT SOLD SEPARAT

Red Lens

1шт.

14

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

15

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Incl. 16, 17; Component Parts Not Shown Separately

1шт.

16

259702A1

BULB

1шт.

17

259701A1

CLIP,ELECTRICAL

1шт.

Выбрано товаров: 20
