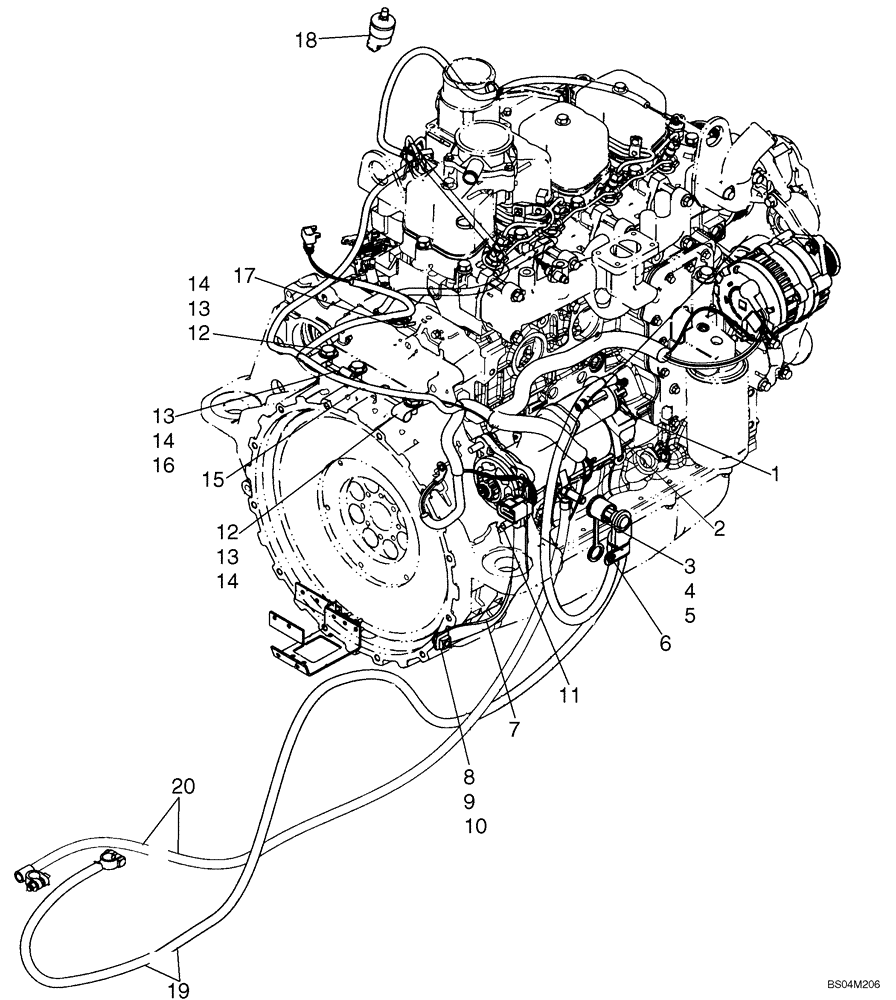

Запчасти Case 430 (04-05) - ENGINE, ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

87366159

STARTING MOTOR

Delco Remy Starter; Replaces 87038474; Component Parts Not Available

1шт.

1

87366159R

REMAN-STARTER

Remanufactured Starter

1шт.

1

87366159C

CORE-STARTER

Return Number

1шт.

2

87053083

HARNESS

Starter Jumper

1шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

5

9706685

NUT,M12 x 1.75, Cl 8

If Used

1шт.

6

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

No Longer Used, Order 9603626

1шт.

6

9603626

CLAMP

Clamp, 1" X 3/8" Bolt

1шт.

7

512306

GROUND CABLE

1шт.

8

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

10

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

1шт.

11

9804263

BOLT,M10 x 49.2mm, Cl 8.8

No Longer Used, Order 9804262

3шт.

11

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

12

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

13

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

3шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

15

87041590

WIRE HARNESS

Engine Harness; Used With Switch 277016A1, See Figure 04-04 Ref 2

1шт.

15

87539896

WIRE HARNESS

Engine Harness; Used With Switch 2852735, See Figure 04-04 Ref 2

1шт.

16

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

17

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

18

293797A1

RESTRICTION SWITCH

Air

1шт.

19

87052670

CABLE ASSY.

Battery; Positive

1шт.

20

338030A1

CABLE ASSY.

Battery; Negative

1шт.
