Запчасти Case 430 (02-34) - WATER PUMP - CONTROL (02) - ENGINE

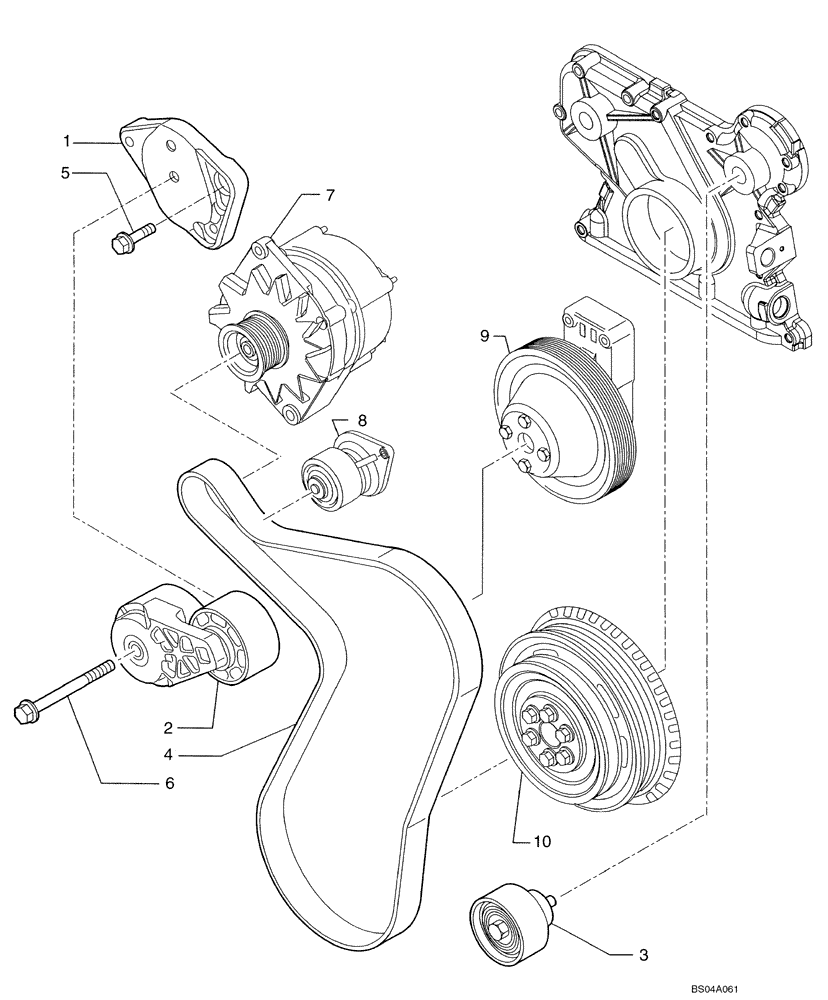

Схема запчастей Case 430 - (02-34) - WATER PUMP - CONTROL (02) - ENGINE
8
7
1
10
4
6
2
9
3
5

Артикул

Название

Примечание

Количество

1

2852163

SUPPORT

1шт.

2

2852161

BELT TENSIONER

1шт.

3

2852162

PULLEY,65mm OD

1шт.

4

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

See Figure 02-06

1шт.

5

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

6

4899109

SCREW,Hex, M10 x 1.5 x 80

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-04

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-31

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-35

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

Выбрано товаров: 10
