Запчасти Case 430 (09-39) - AIR CONDITIONING SYSTEM (09) - CHASSIS

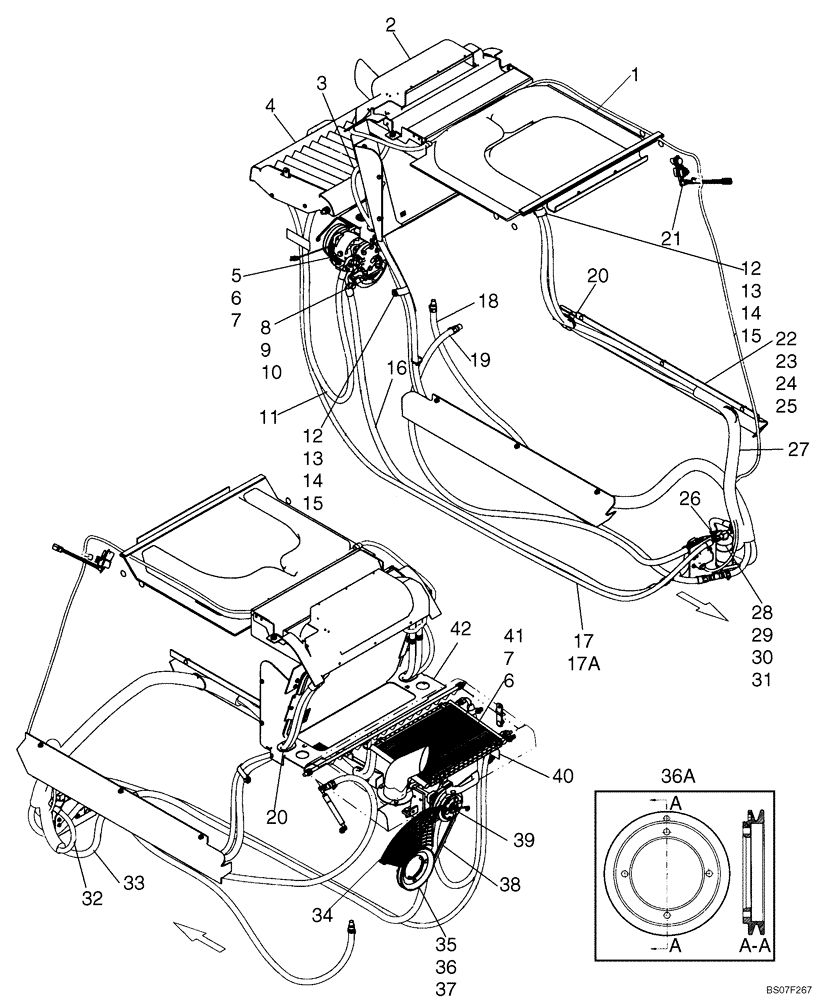

Схема запчастей Case 430 - (09-39) - AIR CONDITIONING SYSTEM (09) - CHASSIS
36a
5
29
33
13
35
24
3
18
8
32
27
25
20
17a
21
37
23
38
4
31
22
17
11
28
7
13
40
16
10
36
41
7
12
9
30
1
12
14
20
39
6
34
26
19
6
14
42
15
2
15

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Basic Heater System; See Figure 09-36

1шт.

2

87029158

HVAC; See Figure 09-38; If Used

1шт.

2

87383261

BLOWER

HVAC; See Figure 09-38A; If Used

1шт.

3

87450536

A/C HOSE,990.6/39 mm L

AC Drain

1шт.

87307909

GROMMET

Rubber Grommet, .688 in ID

1шт.

4

REF

INSTRUCTION

AC Hood; See Figure 09-16A

1шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

6

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

8

87036932

BRACKET

1шт.

9

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

10

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

11

87452009

A/C HOSE

AC Discharge; Incl. O-ring 128484A1

1шт.

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 ID

1шт.

12

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

22.2 Dia

1-2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1-2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 16 x 1.6 mm; Replaces 140016 Washer

1-2шт.

15

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1-2шт.

16

87436118

A/C HOSE

AC Suction; Incl. O-ring 128485A1

1шт.

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.00 ID

1шт.

17

87452012

HOSE ASSY.

AC Liquid; Without High Side Service Port; Incl. O-Ring 128483A1; If Used

1шт.

17a

87574361

HOSE

AC Liquid; With High Side Service Port With Valve Core and Threaded Cap on Opposite End of Hose from Where the Pressure Switch (Ref 26) Mounts; Incl. 128483A1 O-Ring; If Used

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID

2шт.

18

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

19

217-124

FITTING,5/8" Hose Barb x 1/2" Male NPTF

If Used

1шт.

19a

86010532

FITTING,5/8" Hose X 1/2" NPTF Beaded

If Used

1шт.

20

87439844

GUARD

ROPS Front

3шт.

21

87445255

SWITCH

AC; With 6 in. Leads

1шт.

21

87555249

SWITCH

AC; Requires A/C Harness Jumper 87581931; Included In Kit 87583895; See Figure 09-39C

1шт.

87581931

HARNESS

AC; With 8 in. Leads; Included In Kit 87583895; See Figure 09-39C

1шт.

22

87458765

COVER

Left Hand

1шт.

23

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

24

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

If Used

3шт.

25

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

3шт.

26

86625515

PRESSURE SWITCH

AC

1шт.

27

87441006

TUBE,4.6mm ID x 1350mm L

1шт.

28

86625481

RECEIVER-DRYER

1шт.

29

87437501

BRACKET

Receiver Dryer

1шт.

30

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

31

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

32

87452010

HOSE ASSY.

AC Liquid; Incl. O-Ring 128483A1

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID

1шт.

33

87452008

A/C HOSE,12.7mm ID x 3263.9mm L

AC Suction; Incl. O-Ring 128485A1

1шт.

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.00 ID

1шт.

34

87460130

GUARD

Fan; Slotted For Models With Air Conditioning; Models Without Air, See Figure 02-02; Models Without Air, See Figure 02-02

1шт.

35

87438240

PULLEY

AC Compresser Drive

1шт.

36

87439471

LARGE PLATE

PLATE, LARGE AC Drive

1шт.

36a

87391944

PULLEY

AC Compressor Drive; Replaces Ref 35 and 36

1шт.

37

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

38

87454410

BELT,12.70 mm W

AC Drive

1шт.

39

87026034

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

87026034R

REMAN-A/C COMPRESSOR,12V, W/ Clutch, W/ Pulley

430 BSN NA N7M479683, EU N7M479546 (2/05-)

1шт.

87026034C

CORE-A/C COMPRESSOR

Return number

1шт.

40

86639409

DECAL

AC Specs

1шт.

41

86508621

BOLT,Hex, M10 x 130mm, Cl 10.9

1шт.

42

87458638

PANEL

Heat Shield Extension

1шт.

87445908

HARNESS

Pressure Switch To Compressor

1шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Use As Needed

5шт.

Выбрано товаров: 59
