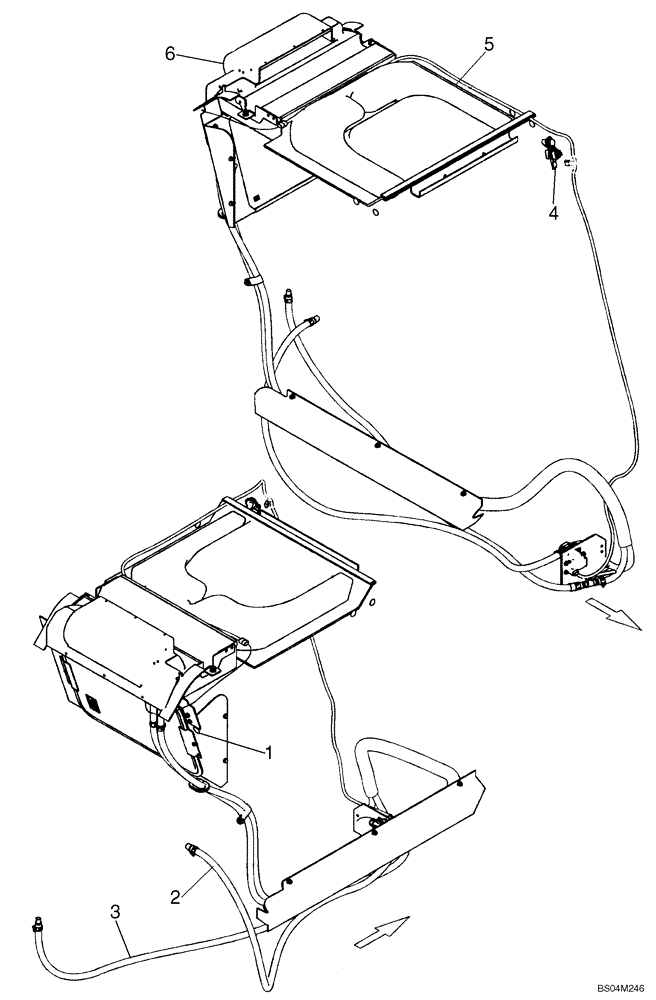

Запчасти Case 430 (09-35) - HEATER, DELUXE (09) - CHASSIS

1

86625129

PLUG,Dome, 1" Hole, Nylon

Replaces 353-411

1шт.

2

86010532

FITTING,5/8" Hose X 1/2" NPTF Beaded

Replaces 87302136

1шт.

3

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

4

87555250

PLUG

Replaces 87442088

1шт.

5

REF

INSTRUCTION

See Figure 09-36

1шт.

6

87029159

HEATER ASSY.

See Figure 09-37

1шт.
