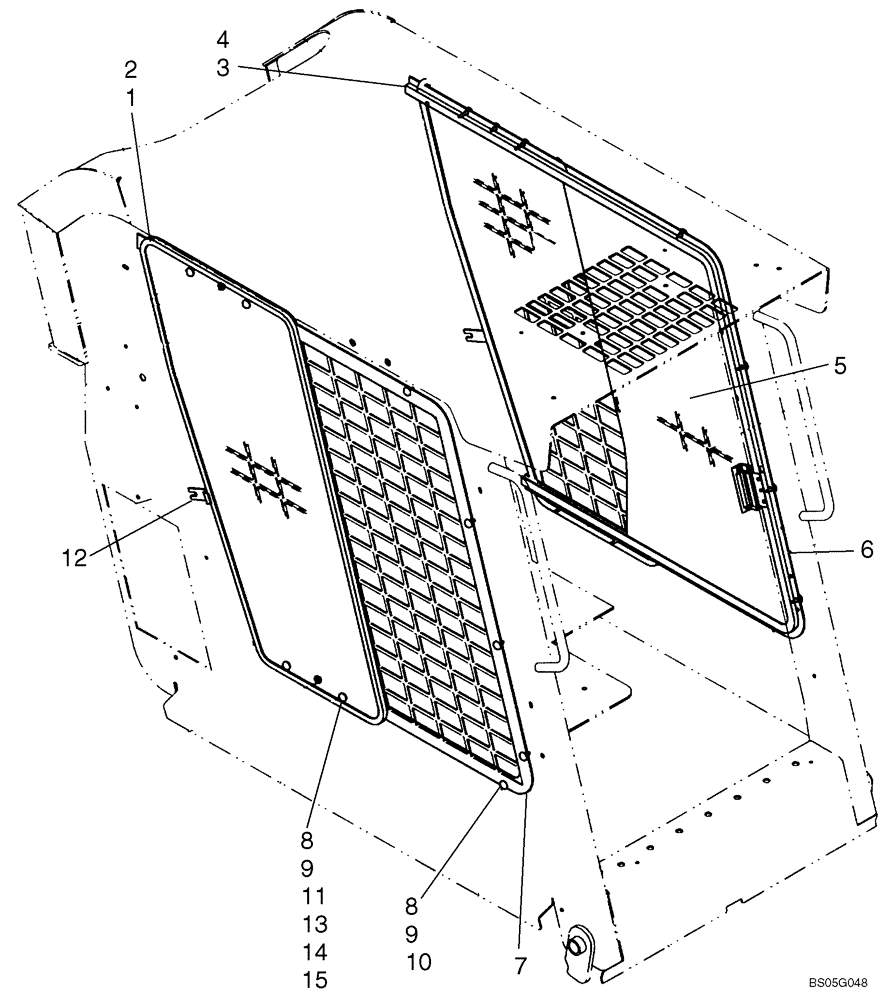

Запчасти Case 430 (09-26) - WINDOWS, SIDE (09) - CHASSIS

1

87033230

WINDOW

Exterior Right Hand; Incl. 4

1шт.

2

87035246

GROMMET

Rubber

1шт.

3

87033228

WINDOW

Exterior Left Hand; Incl. 2

1шт.

4

87035246

GROMMET

Rubber

1шт.

5

87035318

SEAL

2шт.

6

87456516

WINDOW

Interior Left Hand; See Figure 09-26A

1шт.

7

87456517

WINDOW

Interior Right Hand; See Figure 09-26A

1шт.

8

87035254

RETAINER

22шт.

9

87035253

COVER

22шт.

10

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

14шт.

11

86546084

SCREW,M5 x 35mm, Cl 4.8

8шт.

12

87039207

CLAMP

2шт.

13

87016571

NUT,M5, Cl 5

8шт.

14

103777A1

SEALING WASHER

1/4; No Longer Used, Order 86624182

8шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

15

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

8шт.
