Артикул
Название
Примечание
Количество

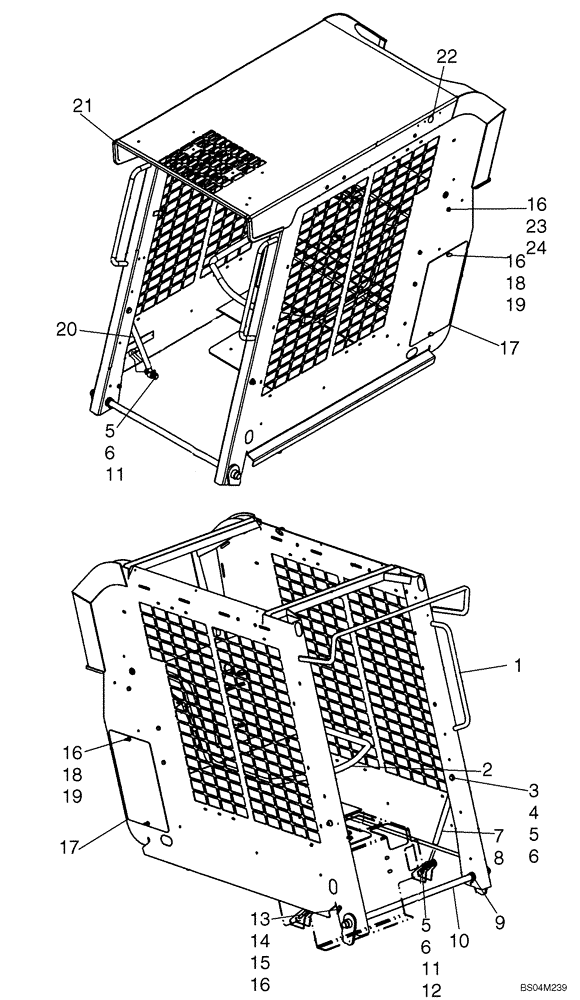

87452374
SVC MAINTENANCE KIT
ROPS Kit; Order From Wholegoods; Includes Ref 1 Frame, Plus The Following Decals, 433957A1, 87438592, 382622A1; Decal 251745A1 No Longer In Kit; See Decal Pages For Illustrations
1шт.
1
NSS
NOT SOLD SEPARAT
87457561 ROPS Frame Only; For Service Order 87452374 ROPS Service Kit
1шт.
3
83931335
BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8
2шт.
4
254698A1
SPACER
Pivot Assist Helper Spring
2шт.
6
100037
LOCK NUT,M10 x 1.5, Cl 8
3шт.
8
282002A2
GAS STRUT
Pivot Assist; Models With Deluxe Heater
1шт.
9
827695C1
CIRCLIP
1 in
2шт.
10
373836A1
PIVOT PIN
No Longer Used, Order 87629753
1шт.
10
87629753
PIN,25.4mm OD x 871mm L
1шт.
11
120070
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
2шт.
12
254697A1
SPACER
Pivot Assist Helper Spring
2шт.
13
120062
BOLT,Hex, M8 x 70mm, Cl 8.8
1шт.
14
391449A1
SPACER
ROPS Latch
1шт.
15
9628098
NUT,M8 x 1.25, Cl 10
1шт.
16
140016
WASHER,M8 x 16mm OD x 1.6mm Thk
13шт.
17
87460732
PANEL
Access
2шт.
18
408117A2
THUMB SCREW,M8 x 1.25 x 15mm
M8
4шт.
19
442856A1
SEALING WASHER,7.11mm ID x 12.7mm OD x 0.79mm Thk
M8
4шт.
20
282002A2
GAS STRUT
Pivot Assist
1шт.
21
378351A1
PROTECTION STRIP
Canopy Edge
1шт.
22
86625129
PLUG,Dome, 1" Hole, Nylon
1шт.
24
86505868
SERRATED NUT,Hex, M8 x 1.25, Cl 8
6шт.
414635A1
COVER,25.4mm OD x 0.51mm Thk
25.4 mm dia. Lexan
4шт.
275618
PLUG,Dome, .250" hole, Nylon
Replaces 353-400
10шт.
Выбрано товаров: 29
