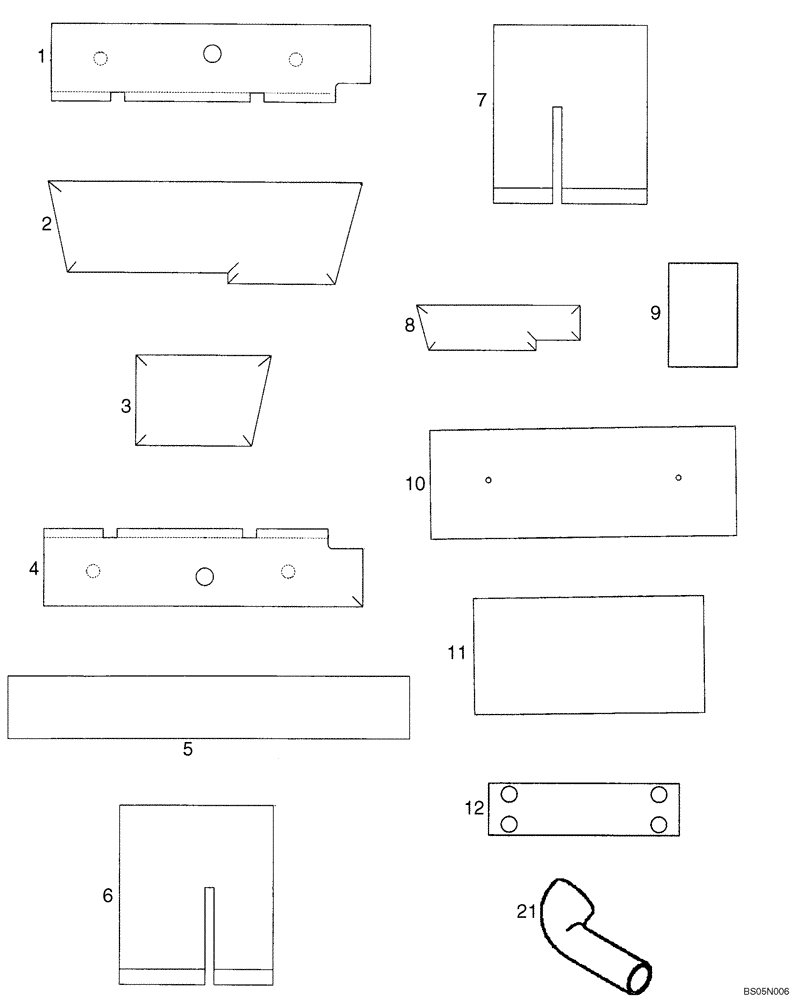

Запчасти Case 430 (09-22B) - NOISE KIT - EUROPE (09) - CHASSIS

87385541

KIT

Kit; European Cab Noise Reduction; Incl. 1 - 19

1шт.

87385291

KIT

Kit; European Cab Noise Reduction; Incl. 1 - 24

1шт.

87542247

CONVERSION KIT

Kit; European Cab Noise Reduction; Incl. 1A, 2A, 3, 4A, 5A, 6 - 19, 20A, 20B, 21 - 24

1шт.

1

402040A1

PAD

Window, Left Hand Rear; If Used

1шт.

1a

87592630

FOAM

Rear Window Left; If Used; Not Illustrated

1шт.

2

402041A1

PAD

Side Screen, Left Hand Tower; If Used

1шт.

2a

87619305

FOAM

Lower Left Hand Side Screen; If Used; Not Illustrated

1шт.

3

402042A1

PAD

Side Screen, Right Hand Tower

1шт.

4

402043A1

PAD

Window, Right Hand Rear; If Used

1шт.

4a

87592633

FOAM

Rear Window Right; If Used; Not Illustrated

1шт.

5

402045A1

PAD

Rear Window; If Used

1шт.

5a

87618692

FOAM

Rear Window Top; If Used; Not Illustrated

1шт.

6

429672A1

INSULATING PANEL

Right Hand Seat Plate

1шт.

7

429673A1

INSULATING PANEL

Left Hand Seat Plate

1шт.

8

434733A1

PAD

Side Screen, Right Hand Tower

1шт.

9

87353205

PAD

Right Tower; Use On Mech Control Units

1шт.

10

318166A1

INSULATOR

Lower

1шт.

11

318165A1

INSULATOR

Upper

3шт.

12

87385276

BLOCK

Plated

1шт.

13

87385279

U-BOLT

Plated; Not Illustrated

2шт.

14

9637692

NUT,3/8"-16, Gr B

Not Illustrated

4шт.

15

87462103

HOSE ASSY.

Resonator; 508 mm (20 in); Not Illustrated; See Fig. 06-03A

1шт.

16

9790527

PLUG,1-5/16" - 12 JIC

PLUG; -16 37 HEX; Not Illustrated; See Fig. 06-03A

1шт.

17

87354990

HOSE ASSY.

1031 mm (40.59 in) Supply; Replaces 87021838 on a Basic Unit, See Figure 06-03A, Ref 7

1шт.

17

87600629

HOSE

950 mm (37.40 in) Supply

1шт.

18

87441649

ADAPTER

Swivel Tee Side Outlet Reducer; Not Illustrated; See Fig. 06-03A

1шт.

19

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Replaces 218-5064; Not Illustrated; See Fig. 06-03A

1шт.

20

87369267

GUARD

Muffler Wrap; Not Illustrated

1шт.

20

87541360

MUFFLER

Muffler Wrap; Replaces 87369267; Not Illustrated; If Used

1шт.

20a

87541360

MUFFLER

Muffler Wrap; Not Illustrated; If Used; Secure With Twist Ties 87393399, Ref 20B

1шт.

20b

87393399

SPRING

Twist Tie; If Used; Secures Muffler Wrap 87541360

9шт.

21

87573940

HOSE

Engine Intake; Replaces 315522A1

1шт.

22

86633353

HOSE CLAMP,70mm - 92mm

Not Illustrated

1шт.

23

87461561

FLOOR MAT

Not Illustrated; See Figure 09-12A

1шт.

24

87055994

BRACKET

Not Illustrated; See Figure 02-04

1шт.
