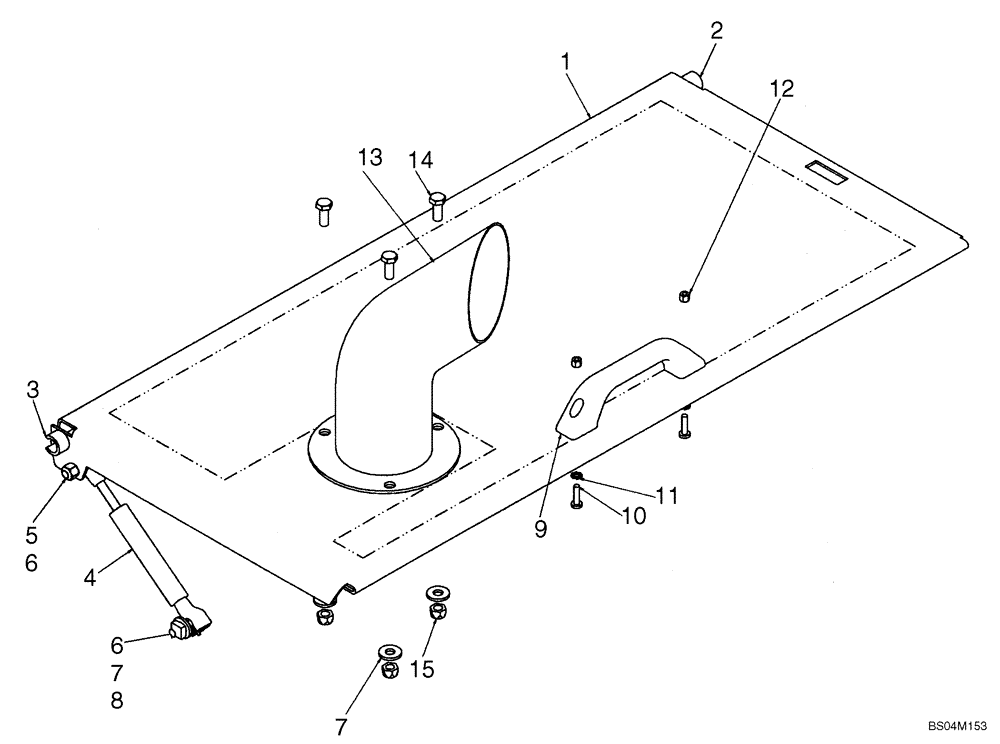

Запчасти Case 430 (09-16) - HOOD (09) - CHASSIS

1

87636798

HOOD

Rear Hood; Replaces 87462016

1шт.

2

435396A1

SPACER

Hood

1шт.

3

87429698

SPACER

Hood

1шт.

4

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Hood Assist

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

6

189609A1

BALL STUD,M8 x 1.25

M8 x 1.25

2шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.

9

406256A1

HANDLE

Rear Hood

1шт.

10

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

M5 x 16

2шт.

11

893-11005

LOCK WASHER,Ext Tooth, M5

2шт.

12

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

13

304811A1

EXTENSION,88.9 mm ID, 139.7 mm OD, 287.2 mm Length

Exhaust Extension

1шт.

13

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Extension; 268 mm (10.55 in) Tall; Replaces 304811A1; If Used

1шт.

13

87725355

EXHAUST SYSTEM PIPE

Exhaust Extension; 243 mm (9.57 in) Tall; If Used

1шт.

14

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

832-41408

NUT,M8 x 1.25, Cl 10

3шт.
