(09-14B) - JOYSTICK CONTROL MOUNTING (430 WITH PILOT CONTROL)

Запчасти Case 430 (09-14B) - JOYSTICK CONTROL MOUNTING (430 WITH PILOT CONTROL) (09) - CHASSIS

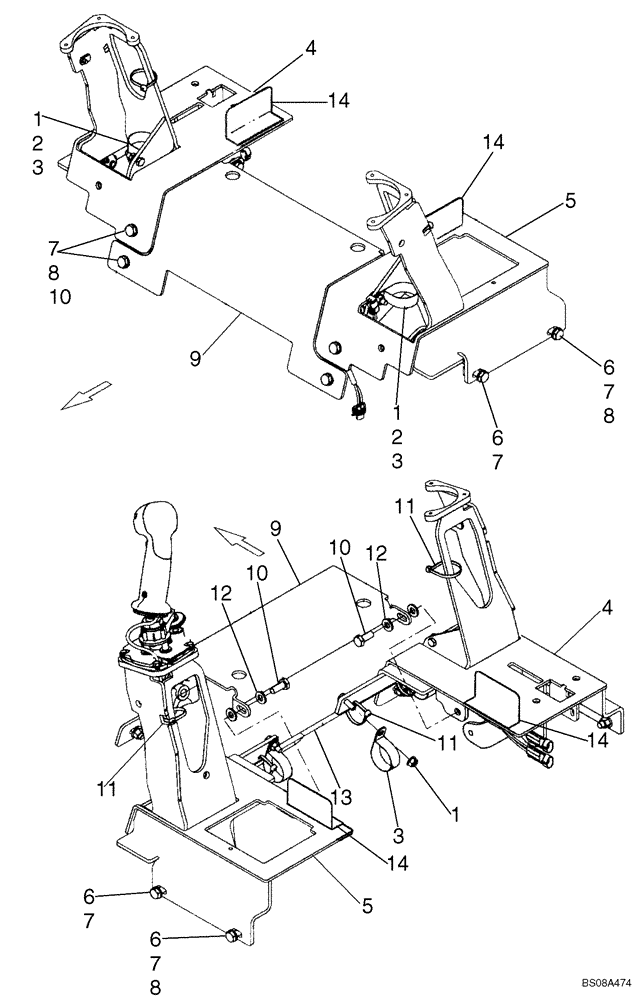

Схема запчастей Case 430 - (09-14B) - JOYSTICK CONTROL MOUNTING (430 WITH PILOT CONTROL) (09) - CHASSIS
3
10
14
14
4
8
14
7
7
6
3
4
6
6
11
12
7
1
8
2
2
5
13
9
5
8
12
10
10
7
11
1
6
3
1
14
11
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

4

87564015

BRACKET

Bracket, Console Right Hand

1шт.

5

87564018

BRACKET

Console Left Hand

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

8

43435

FLANGE NUT,Hex, M10 x 1.5

6шт.

9

87564011

BRACKET

1шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

12

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

13

87568434

HARNESS

1шт.

14

87645659

DECAL

Pilot Control Handle Guide

2шт.
