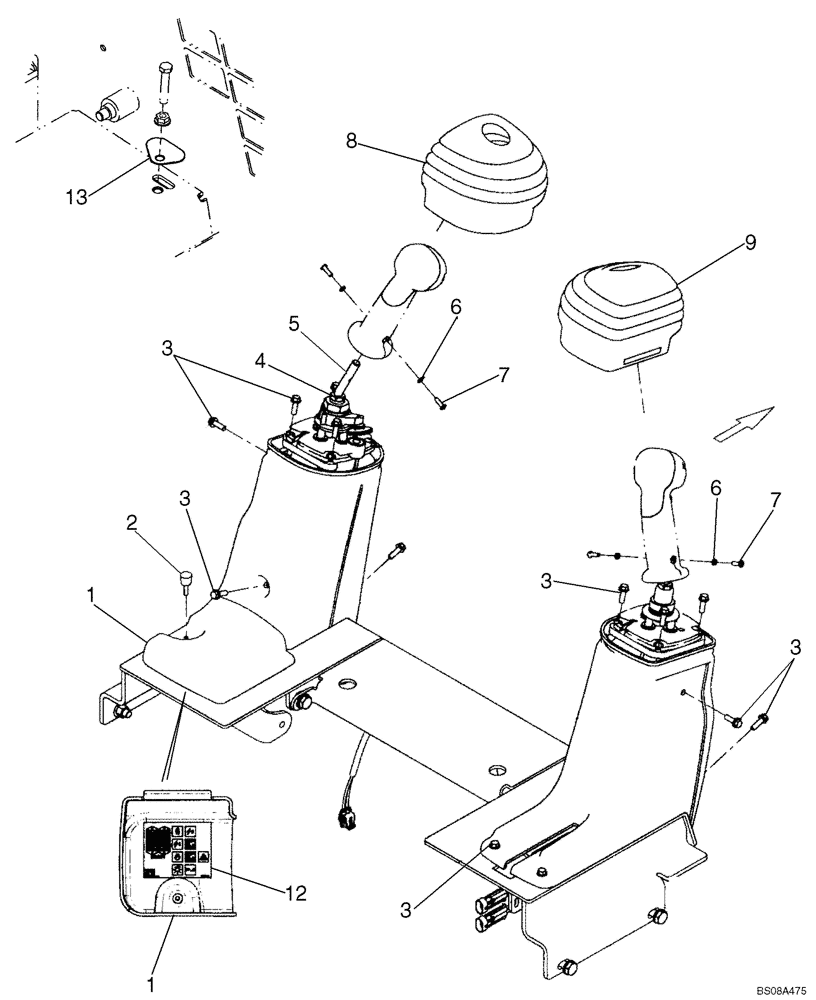

Запчасти Case 430 (09-14A) - JOYSTICK CONTROL CONSOLE (430 WITH PILOT CONTROL) (09) - CHASSIS

1

87575610

COVER

Fuse Cover

1шт.

2

273890

THUMB SCREW,#10 - 32 x 3/4"

1шт.

3

87556251

SCREW,Hex, 1/4" - 20 x 3/4"

Screw, Hex Head With Washer 1/4 - 20 X 3/4

13шт.

4

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

2шт.

5

87568432

ROD

Handle Mounting Left Or Right Hand

2шт.

6

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

7

87534744

FASTENER,BTN HD, #10 - 32 x 5/8"

4шт.

8

87568426

BOOT

LH

1шт.

9

87568427

BOOT

RH

1шт.

10

87575608

CONSOLE

Pilot Console, Left Hand

1шт.

11

87575609

CONSOLE

Pilot Console, Right Hand

1шт.

12

87584348

DECAL

Fuse

1шт.

13

87614032

COVER PLATE

Cover Plate

1шт.
