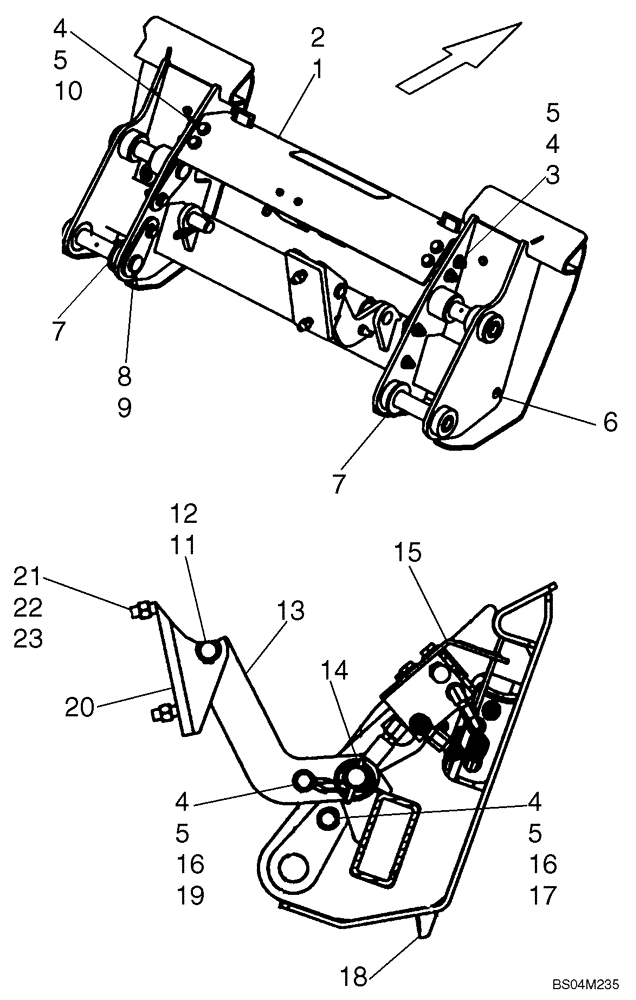

Запчасти Case 430 (09-04A) - COUPLER, HYDRAULIC (ITALIAN) (09) - CHASSIS

1

409782A1

PLATE

Cover Plate; No Longer Used, Order 87620412

1шт.

1

87620412

PLATE

Cover Plate

1шт.

2

409783A1

BRACKET

Coupler Cover

2шт.

3

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

4

86512554

NUT,M10 x 1.5, Cl 10

14шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

26шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

8

87659406

PIN,31.75mm OD x 169.2mm L

Replaces 394582A2

4шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

D71829

SNAP RING,#87, Ext

4шт.

12

D138889

PIN,69.98mm OD x 160mm L

Lift Cylinder Pivot

2шт.

13

398194A1

LINK

Bucket Lock; If Used

2шт.

13

84141396

LINK

Red Bucket Lock; If Used

2шт.

14

A30338

PIN

2шт.

15

D55216

PAD,2" x 9"

1шт.

16

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

6шт.

17

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

4шт.

18

87423807

PLATE

1шт.

19

L78786

CABLE RETAINER

2шт.

20

398196A1

BRACKET

Bucket Lock

2шт.

21

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

22

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

23

832-41412

NUT,M12 x 1.75, Cl 10

4шт.
