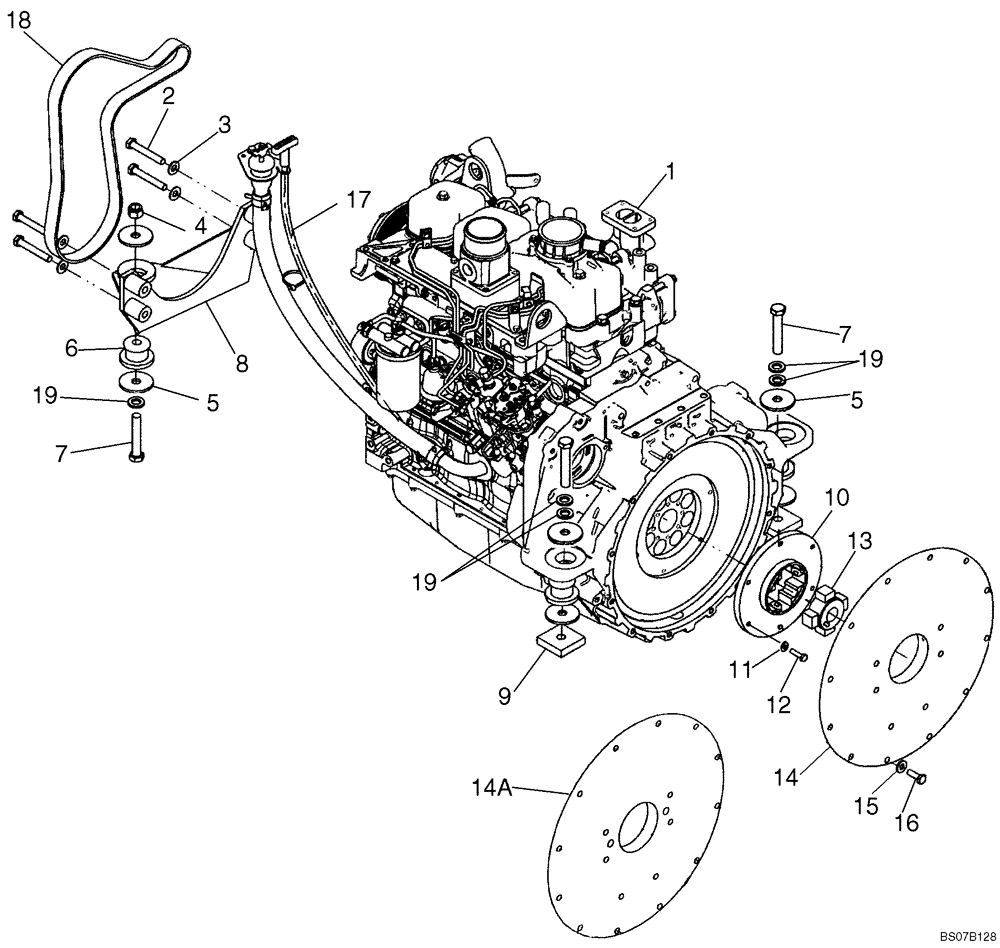

Запчасти Case 430 (02-06) - ENGINE - MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

Engine; See Figure 02-08

1шт.

2

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

4

412066

NUT,M16 x 2.0, Cl 8

1шт.

5

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

Replaces 496-81025

6шт.

6

A140221

MOUNTING PARTS

3шт.

7

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

Replaces 814-16090

3шт.

8

87041763

ENGINE MOUNT

Rear

1шт.

9

390350A1

PLATE

2шт.

10

87024539

ELEMENT

Pump Drive, Use With Ref 13

1шт.

10a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive, Use With Ref 13A

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

12

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

13

87024588

HUB

Pump Drive Star, Use With Ref 10

1шт.

13a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Star, Use With Ref 10A

1шт.

14

87519252

PROTECTION PLATE

Pump Mounting, Models Without Pilot Control; Replaces 87014858

1шт.

14a

87547003

PLATE

Pump Mounting, Models With Pilot Control

1шт.

15

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

Replaces 896-15010

10шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

17

REF

INSTRUCTION

Dipstick Assy; See Figure 02-07

1шт.

18

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

1шт.

19

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.
