Запчасти Case 430 (08-24) - CONTROL VALVE - RELIEF VALVES (08) - HYDRAULICS

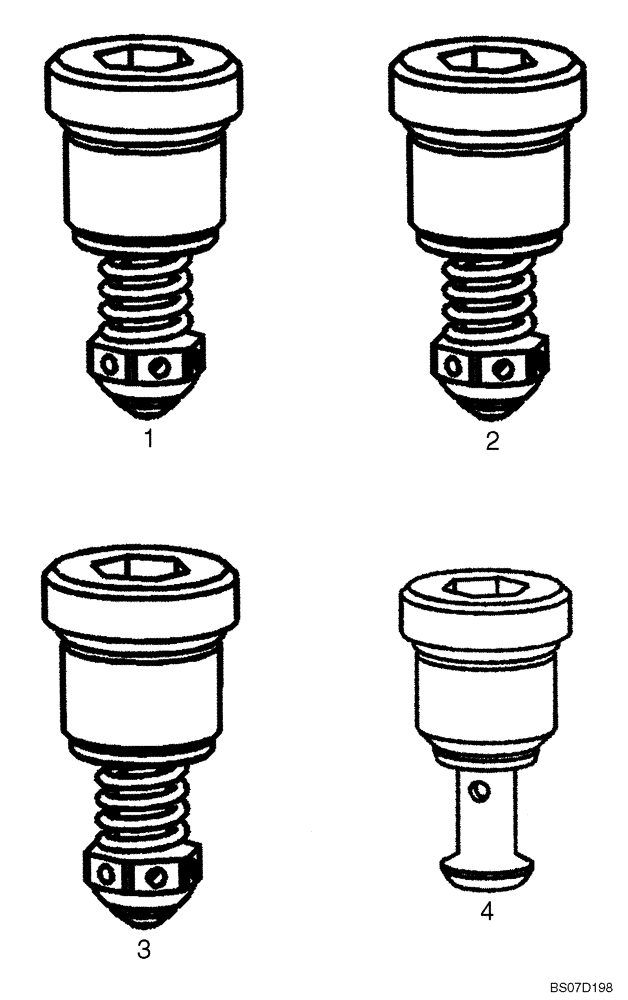

Схема запчастей Case 430 - (08-24) - CONTROL VALVE - RELIEF VALVES (08) - HYDRAULICS
3
4
1
2

Артикул

Название

Примечание

Количество

87583285

VALVE

Manual Control Valve; Incl. Figure 08-21 - 08-31

1шт.

87546974

HYDRAULIC VALVE

Manual Control Valve; Models With Pilot Control; Incl. Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35

1шт.

87546975

HYDRAULIC VALVE

Manual Control Valve; Pilot Control Models With Hydraulic Attachment; Incl. Figures 08-21B - 08-24, 08-28, 08-30, 08-32 - 08-37

1шт.

1

87576153

VALVE

Workport Relief Valve, Non-Adjustable 215 Bar

1шт.

2

87448935

Workport Relief Valve, Non-Adjustable 230 Bar

1шт.

3

87445943

VALVE

Workport Relief Valve, Non-Adjustable 260 Bar

1шт.

4

87445932

VALVE

Workport Anti-Cavitation Valve

1шт.

Выбрано товаров: 7
