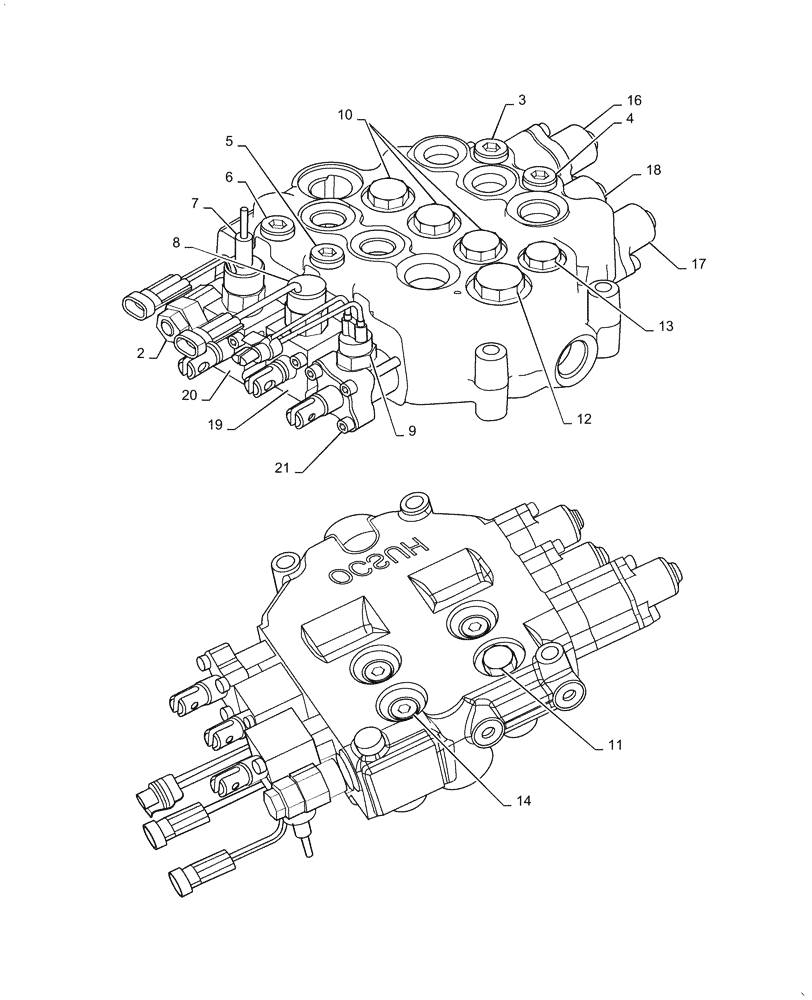

Запчасти Case 430 (08-10A) - VALVE ASSY, CONTROL (08) - HYDRAULICS

1

87583286

VALVE

Incl. 2 - 23; Individual Component Art Not Available At Time Of Printing

1шт.

2

87610349

SEAL KIT

Seal Replacement Kit

1шт.

3

87610350

VALVE PRESSURE RELIE

Main Relief Valve

1шт.

4

87576153

VALVE

Workport Relief Valve

1шт.

5

87445935

VALVE

Workport Relief Valve

1шт.

6

87445943

VALVE

Workport Relief Valve

1шт.

7

87445932

VALVE

Workport Anti-Cavitation

1шт.

8

87445988

SOLENOID,Spool Lockout, With Manual Override

Spool Lock Out Solenoid Manual

1шт.

9

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Spool Lock Out Solenoid Non-Manual

1шт.

10

87576154

SOLENOID

Hi-Flow Solenoids For EH Auxiliary

2шт.

11

87576157

DAMPING VALVE

Check Valve Group

3шт.

12

87610351

VALVE,M14 x 1.5

Check Valve Group

1шт.

13

87576158

PLUG

1шт.

14

87576160

PLUG

1шт.

15

87576161

PLUG

1шт.

16

87610352

PLUG

Plug

3шт.

17

87576162

PLUG

1шт.

18

87576163

SPOOL

Detent

1шт.

19

87576169

SPOOL

1шт.

20

87611845

SPOOL

EHPV

1шт.

21

87611846

SPOOL

EHPV

1шт.

22

87611848

SPOOL

Spool

1шт.

23

87611849

SPOOL

1шт.
