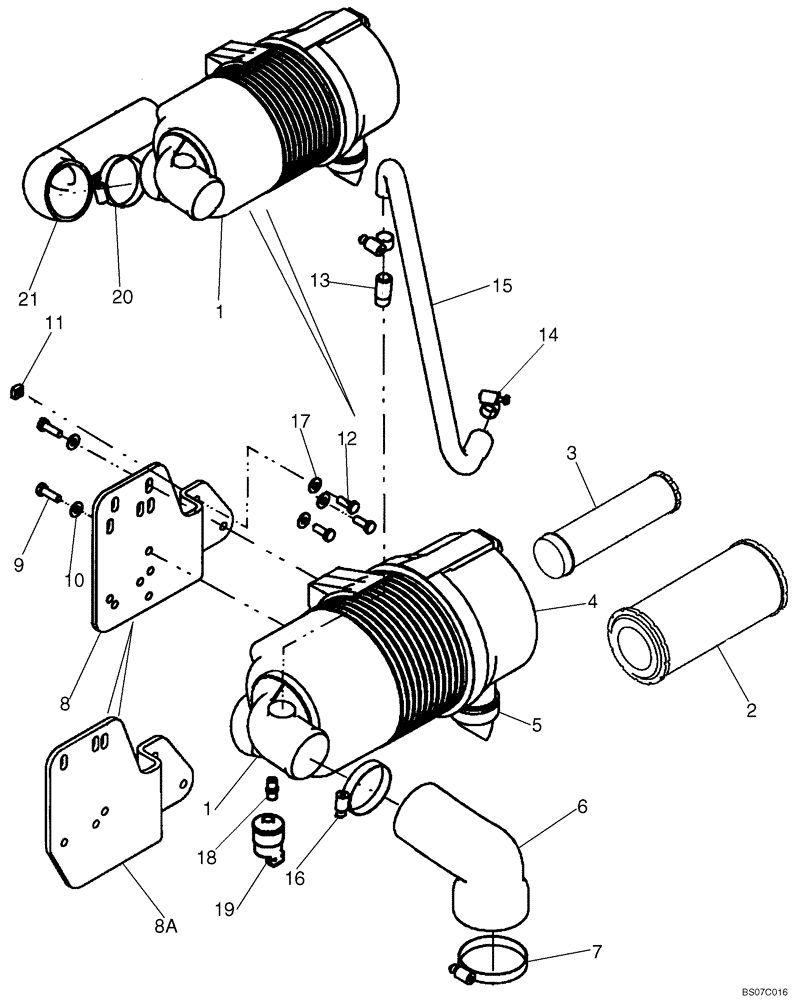

Запчасти Case 430 (02-04) - AIR CLEANER - ENGINE (02) - ENGINE

87041485

CLEANER ASSY.

Incl. 1 - 5

1шт.

1

87041842

AIR CLEANER

Body

1шт.

2

222425A1

AIR FILTER

Primary

1шт.

3

222429A1

AIR FILTER

Secondary

1шт.

4

440831A1

FILTER COVER

Incl. 4A

1шт.

4a

86990981

LOCKING TAB

Not Illustrated Separately

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

6

87351952

INTAKE AIR HOSE,63.50 mm ID, 76.00 mm ID x 135.20 mm, SAE J20R4

Air Cleaner Outlet; Replaces 87035213

1шт.

7

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

1шт.

8

87022215

BRACKET

If Used

1шт.

8a

87055994

BRACKET

If Used

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

13

L17985

FITTING,3/8" - 18 NPT

1шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

15

87352012

HOSE,17.0 mm ID, 22.0 mm ID x 314.20 mm SAE 30R2 TYPE 1

Replaces 87035214

1шт.

16

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

2шт.

17

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

3шт.

18

D36264

FITTING

Adapter; Air Cleaner; Replaces 86976679

1шт.

19

87013666

SWITCH,Air Filter Restriction

Air Restriction; Replaces 293797A1

1шт.

20

86633353

HOSE CLAMP,70mm - 92mm

European Models

1шт.

21

87573940

HOSE

Tube; Engine Intake; European Models

1шт.
