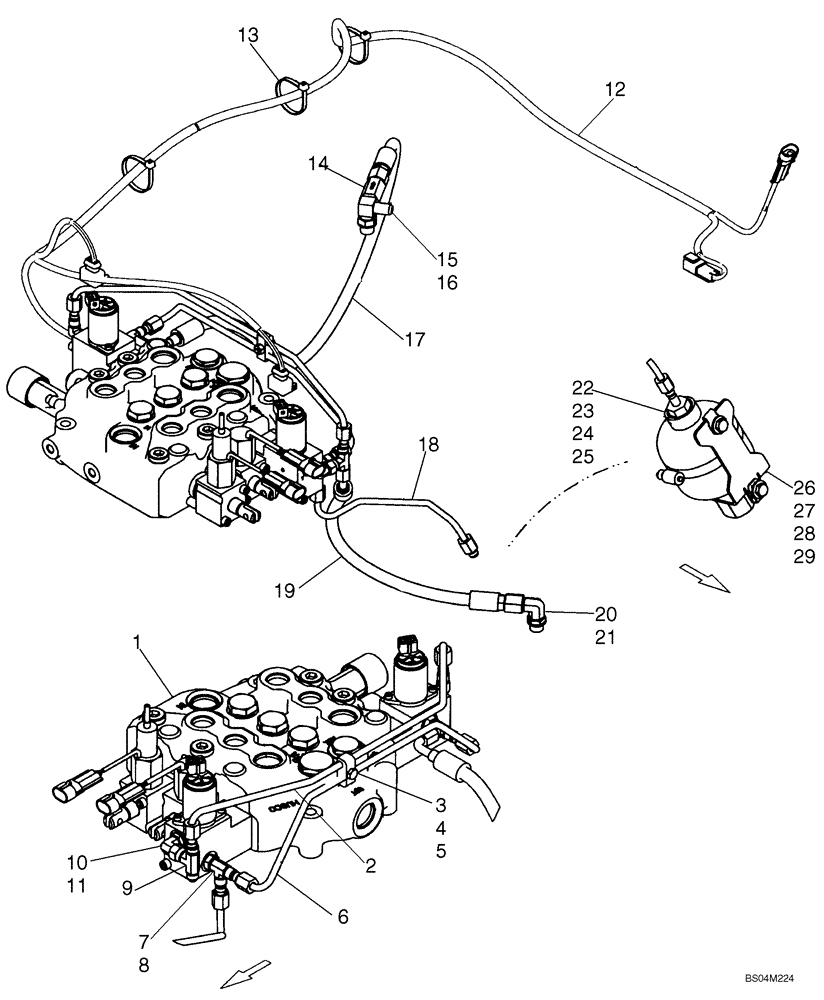

Запчасти Case 430 (08-08) - HYDRAULICS, ATTACHMENT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
87571206
KIT
EH Attach Controls; Incl. 1 - 29
1шт.
1
87527174
VALVE
EH Auxiliary; Replaces 87446766; See Figure 08-10; If Used
1шт.
1
87635385R
REMAN-HYD VALVE
430 SKID STEER BSN 430 NA N7M479683, EH Auxiliary (2/05-), Reman for New PN 87527174
1шт.
1
87635385C
CORE-VALVE HYD
Return Number
1шт.
1
87583286
VALVE
EH Auxiliary; See Figure 08-10A; If Used
1шт.
2
87021276
HYD TUBE
1шт.
3
608089
CLAMP
1шт.
5
87030561
NUT,M6 x 1, Cl 8
Replaces 832-41406
1шт.
6
87438840
HYD TUBE,6.35 mm OD
Pilot Pressure
1шт.
7
86513019
TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC
Incl. 8
2шт.
8
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
9
218-841
TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br
If Used
1шт.
9
86513012
BRANCH TEE
Tee,37FL X Swivel Branch -04
1шт.
10
216773
90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
Incl. 11
2шт.
11
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
12
87447970
HARNESS
Electro-Hydraulic Auxiliary
1шт.
13
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP
3шт.
14
87441786
VALVE
In Line
1шт.
15
L104616
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 16
1шт.
16
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
17
87022702
HOSE
675 mm (26.57 in)
1шт.
18
87447764
HYD TUBE,6.35 mm OD
Pilot Pressure
1шт.
19
87460042
HOSE,6.35mm ID x 560mm L
Case Drain
1шт.
22
87010110
HYD CONNECTOR
Incl 23; Replaces 218-5359; If Used
1шт.
22
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
Incl 23A
1шт.
24
86625034
HOSE CLAMP,90.4mm - 114.3mm, Worm Gear
Type F, #54; If Used
1шт.
24
86625032
HOSE CLAMP,88.9mm ID - 65mm ID
1шт.
25
86624732
ACCUMULATOR
If Used
1шт.
25
87376969
ACCUMULATOR
1шт.
26
87440253
ANGLE
If Used
1шт.
26
87621245
ANGLE
If Used
1шт.
26
87473790
BRACKET
Accumulator Bracket
1шт.
27
122158A1
NUT,M8, U
2шт.
Выбрано товаров: 40
