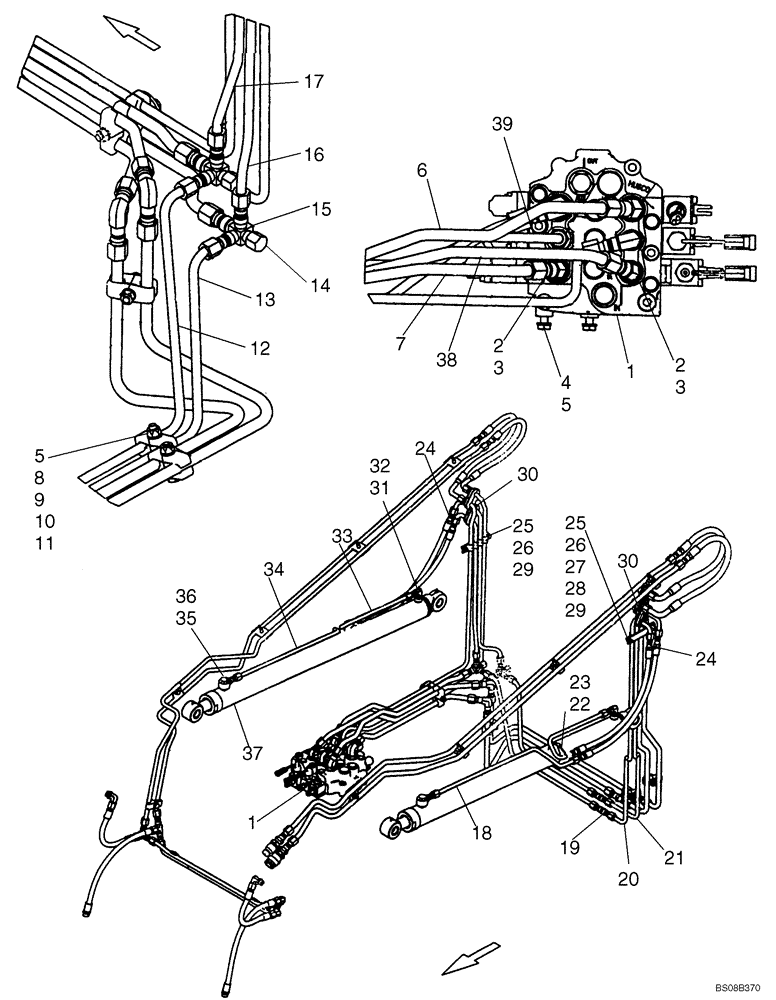

Запчасти Case 430 (08-01) - HYDRAULICS - LIFT (08) - HYDRAULICS

1

87446760

CONTROL VALVE

3000 PSI; See Figure 08-09

1шт.

1

87635384R

REMAN-HYD VALVE

430 SKID STEER BSN NA N7M479683, LIFT, 3000 PSI (2/05-), Reman for New PN 87446760

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87527172

VALVE

3000 PSI; Replaces 87446760; Component Parts Not Yet Available; If Used

1шт.

1

87635384R

REMAN-HYD VALVE

430 SKID STEER BSN NA N7M479683, LIFT (2/05-), Reman for New PN 87527172

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87583285

VALVE

Manual Control Valve; Incl. Figure 08-21 - 08-31; If Used

1шт.

2

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 3

2шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 Tube

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

6

87445748

HYD TUBE,.625" OD

Lower; 5/8 Tube

1шт.

7

87445749

HYD TUBE,.625" OD

Raise; 5/8 Tube

1шт.

8

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

9

86512554

NUT,M10 x 1.5, Cl 10

1шт.

10

D120679

CLAMP,Tube, 1/2"

1/2 in

1шт.

11

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

12

87421672

HYD TUBE,12.7 mm OD x 527.4, 350.6 mm L

Left Hand; Raise; 1/2 in Tube

1шт.

13

87405143

HYD TUBE,12.7 mm OD x 442.4, 289.4 mm L

Left Hand; Lower; 1/2 in Tube

1шт.

14

262159

CAP,3/4" - 16 Fem JIC

2шт.

15

87404825

TEE

2шт.

16

87405139

HYD TUBE,12.7 mm OD x 647.2, 186.1 mm L

Right Hand; Lower; 1/2 in Tube

1шт.

17

87405141

HYD TUBE,12.7 mm OD x 570.8, 107.2 mm L

Right Hand; Raise; 1/2 in Tube

1шт.

18

406344A1

TUBE

Left Hand; Lower; 1/2 in Tube X 27 3/16 Length; Used With 87438190 Cylinder

1шт.

18

87711361

HYD TUBE,12.7 mm OD x 670, 73 mm L

Left Hand; Lower; 1/2 in Tube X 26 3/8 Length; Used With 87705799 Cylinder

1шт.

19

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

20

87405137

HYD TUBE,12.7 mm OD x 949, 251.1 mm L

Left Hand; Raise; 1/2 in Tube

1шт.

21

87405135

HYD TUBE,12.7 mm OD x 969.8, 325 mm L

Left Hand; Lower; 1/2 in Tube

1шт.

22

R24703

SUPPORT

2шт.

23

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

24

390211A1

HOSE ASSY.,9.53mm ID x 575mm L

Raise

4шт.

25

406940A1

BAR

2шт.

26

406941A1

BAR

2шт.

27

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

28

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

1шт.

29

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

3шт.

30

376523A2

SUPPORT,1/2"

1/2 in

6шт.

31

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 32

2шт.

32

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

396243A2

TUBE,12.7 mm OD

Raise; 1/2 in X 11 7/8 Length Tube; Used With 87438190 Cylinder

2шт.

33

87711363

HYD TUBE,12.7 mm OD x 349, 71 mm L

Raise; 1/2 in X 13 3/4 Length Tube; Used With 87705799 Cylinder

2шт.

34

406342A1

TUBE

Right Hand, Lower; 1/2 in X 27 3/16 Length Tube; Used With 87438190 Cylinder

1шт.

34

87711362

HYD TUBE,12.7 mm OD x 670, 73 mm L

Right Hand, Lower; 1/2 in X 26 3/8 Length Tube; Used With 87705799 Cylinder

1шт.

35

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 35

2шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

87438190

CYLINDER ASSY.

Lift Cylinder, 38mm (1 1/2 in.) Rod X 63.5mm (2 1/2 in.) Bore X 910mm (35 13/16 in.) Stroke; If Used; See Figure 08-13

2шт.

87705799R

REMAN-HYD CYLINDER

430 BSN N7M479684,

2шт.

87705799C

CORE-HYD CYLINDER

Return Number

1шт.

37

87705799

CYLINDER,Double Acting, 44.4mm Rod, 910mm Stroke

Lift Cylinder, Heavy Duty, 44.5mm (1 3/4 in.) Rod X 63.5mm (2 1/2 in.) Bore X 1128mm (44 3/8 in.) Stroke; If Used; See Fig 08-13A

2шт.

38

87445748

HYD TUBE,.625" OD

Tube, Lower; 5/8 Tube X 33 1/8 in. Length

1шт.

39

87445747

HYD TUBE,.50" OD

Tube, Dump; 1/2 Tube

1шт.
