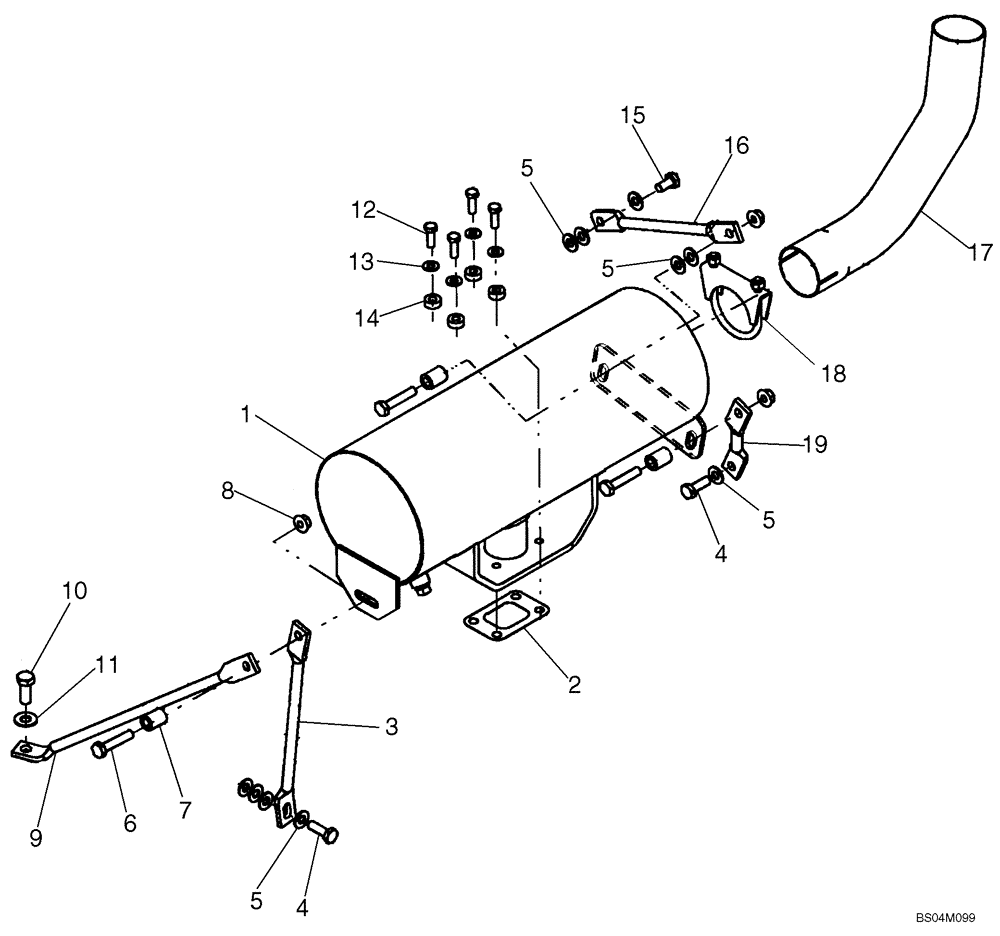

1
87040452
MUFFLER
1шт.
2
87021302
GASKET,0.43mm Thk
Muffler
1шт.
3
87043605
ROD
Muffler Support
1шт.
4
43140
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
2шт.
5
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
10шт.
6
43249
BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9
3шт.
7
256690A1
SPACER
3шт.
8
411345A1
LOCK NUT
M10
3шт.
9
87040817
ROD
Muffler Support
1шт.
10
9706687
BOLT,M12 x 1.75 x 30mm, Cl 8.8
1шт.
11
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
1шт.
12
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
6шт.
13
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
9шт.
14
86633393
SPACER
If Used
4шт.
14
87606607
SPACER,8.73mm ID x 20.05mm OD x 7.9mm L
If Used
4шт.
15
43138
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
1шт.
16
87040820
ROD
Muffler Support
1шт.
17
87461608
TUBE,270.46, 252 mm L
Exhaust Tube; Replaces 87041462; If Used
1шт.
17
87584270
EXHAUST SYSTEM PIPE
If Used
1шт.
18
87461995
CLAMP,68mm ID, Muffler
Replaces A13240
1шт.
19
87046105
ROD
Muffler Support
1шт.
87588078
FOAM
Muffler Wrap, If Used; European Models; Installs With (9) 87393399 Twist Ties
1шт.
87393399
SPRING
Twist Ties
9шт.
