(06-06A) - HYDROSTATICS - RESONATOR (EUROPEAN MODELS WITH PILOT CONTROL)

Запчасти Case 430 (06-06A) - HYDROSTATICS - RESONATOR (EUROPEAN MODELS WITH PILOT CONTROL) (06) - POWER TRAIN

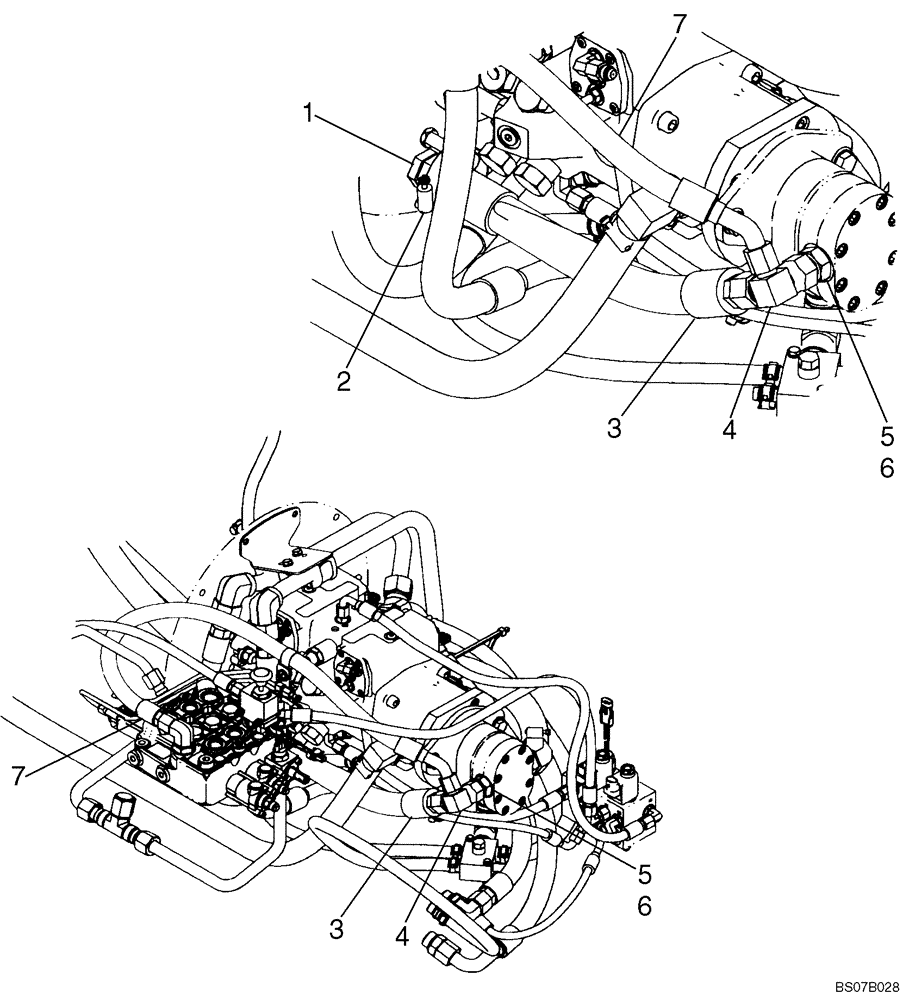

Схема запчастей Case 430 - (06-06A) - HYDROSTATICS - RESONATOR (EUROPEAN MODELS WITH PILOT CONTROL) (06) - POWER TRAIN
2
3
7
4
5
6
5
7
1
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9790527

PLUG,1-5/16" - 12 JIC

1шт.

2

86633353

HOSE CLAMP,70mm - 92mm

1шт.

3

87462103

HOSE ASSY.

1шт.

4

87441649

ADAPTER

1шт.

5

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 6

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

87600629

HOSE

Hose, Valve Supply

1шт.
