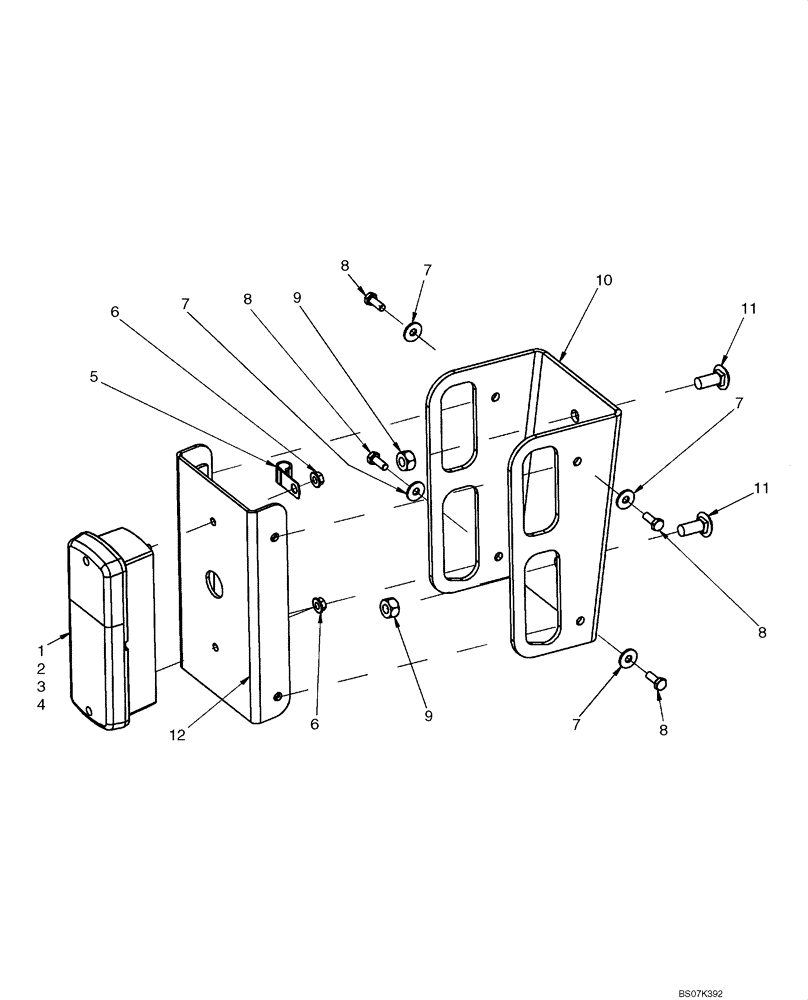

Запчасти Case 430 (04-23) - REAR LIGHT AND MOUNTING (NA) (04) - ELECTRICAL SYSTEMS

1

177239A2

LAMP, TAIL

LIGHT, TAIL Incl 2 - 4

2шт.

2

187140A1

LENS

2шт.

3

3131227R1

BULB,P25-1, 12V, 21W

2шт.

4

3131234R1

BULB,P25-2, 12V, 5W

2шт.

5

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

6

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

9

87030549

NUT,M10 x 1.5, Cl 10

4шт.

10

419431A1

BRACKET

Rear Turn Signal Bracket

2шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

12

427180A1

BRACKET

2шт.
