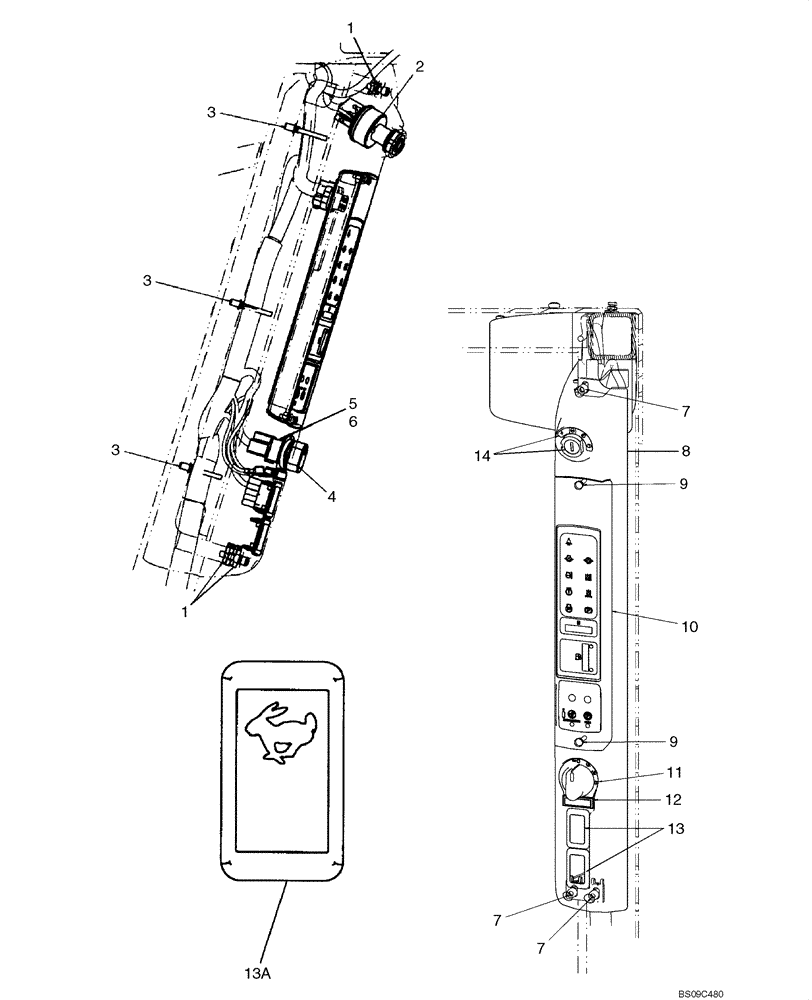

Запчасти Case 430 (04-08) - CONSOLE - RH (04) - ELECTRICAL SYSTEMS

1

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

2

282775A1

IGNITION SWITCH

Ignition Switch And 2 Keys

1шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap With Fastener

3шт.

4

86729670

KNOB

Lights

1шт.

5

86729669

SWITCH

Light Switch

1шт.

6

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

7

280272

HEX SOC SCREW,1/4" - 20 x 3/4"

3шт.

8

87665327

CONSOLE

Console, RH; If Used

1шт.

8

84128478

CONSOLE

Console, RH

1шт.

9

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

10

87638864

INSTRUMENT PANEL

Instrument Panel, Standard (Shown In Illustration)

1шт.

10

87638864R

REMAN ELECT CONTROL

Remanufactured Instrument Panel

1шт.

10

87638864C

CORE-ELECTRONIC CONT

Return Number, INSTRUMENT PANEL

1шт.

10

84128950

CLUSTER

Instrument Panel, Case Deluxe; Replaces 8749421, 87638865, 87476813, 87488255

1шт.

10

84128950R

REMAN-INSTR CLUSTER

REMAN-INSTRUMENT CLUSTER Remanufactured Instrument Cluster;

1шт.

10

84128950C

CORE-CLUSTER, INSTR

CORE-INSTRUMENT CLUSTER Return Number, CLUSTER

1шт.

Before Serial Number NAM416140 NA; BSN NAM421318 EU

1шт.

10

87494291C

CORE-CLUSTER, INSTR

CORE-INSTRUMENT CLUSTER Return Number, CLUSTER

1шт.

10

84251468

MILES COUNTER DEVICE

After Serial Number NAM416141 NA; ASN NAM421319 EU

1шт.

10

84251468R

REMAN-INSTR CLUSTER

430 SERIES 3, ASN NA N7M479683, After Serial Number NAM416141 NA (1/08-)

1шт.

10

84251468C

CORE-CLUSTER, INSTR

Return Number

1шт.

11

87677739

DECAL

Decal, Light Switch; If Used; See Fig 09-64A

1шт.

11

87492705

DECAL

Decal, Light Switch; See Fig 09-64A

1шт.

12

86627432

PLASTIC PLUG

1шт.

13

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1-2шт.

13a

87634136

SWITCH

High Speed Indicator; If Used

2шт.

14

87735655

DECAL

Decal, Key Switch;If Used; See Fig 09-64

1шт.

14

87629079

DECAL

Decal, Key Switch; See Fig 09-64

1шт.
